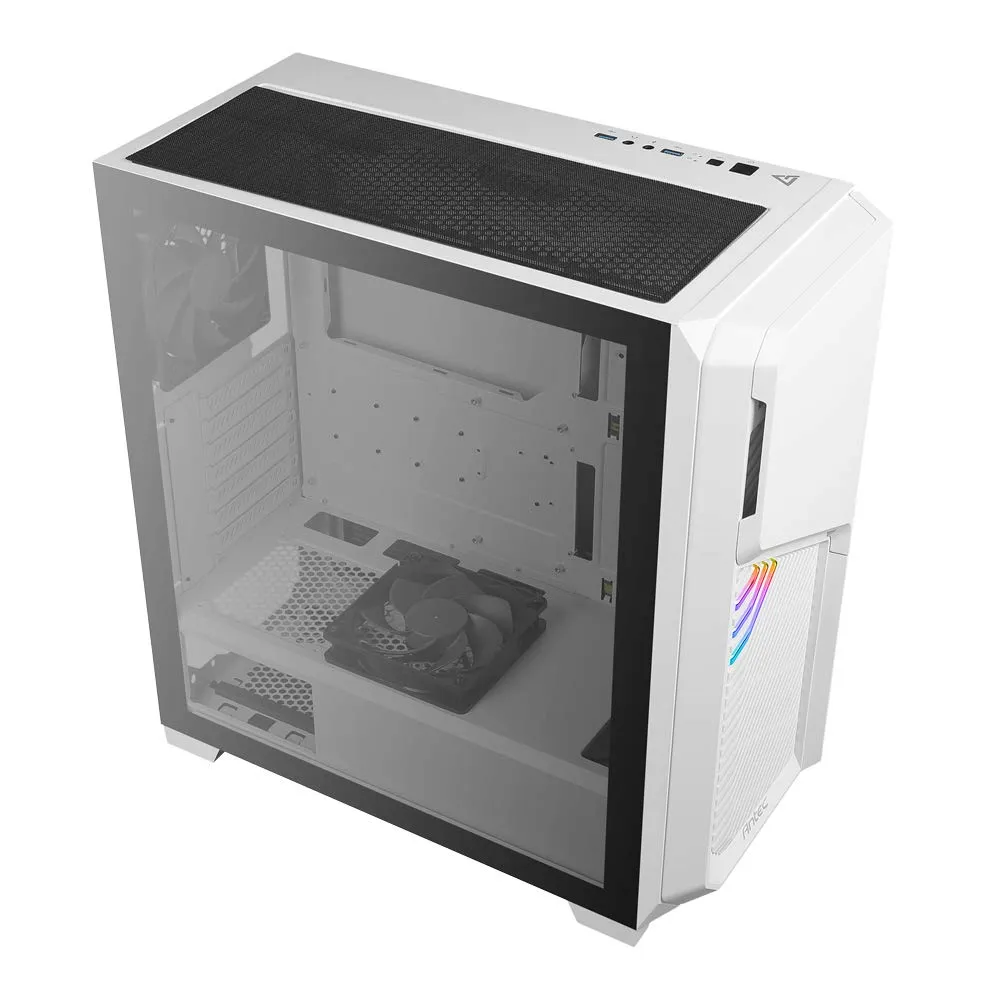

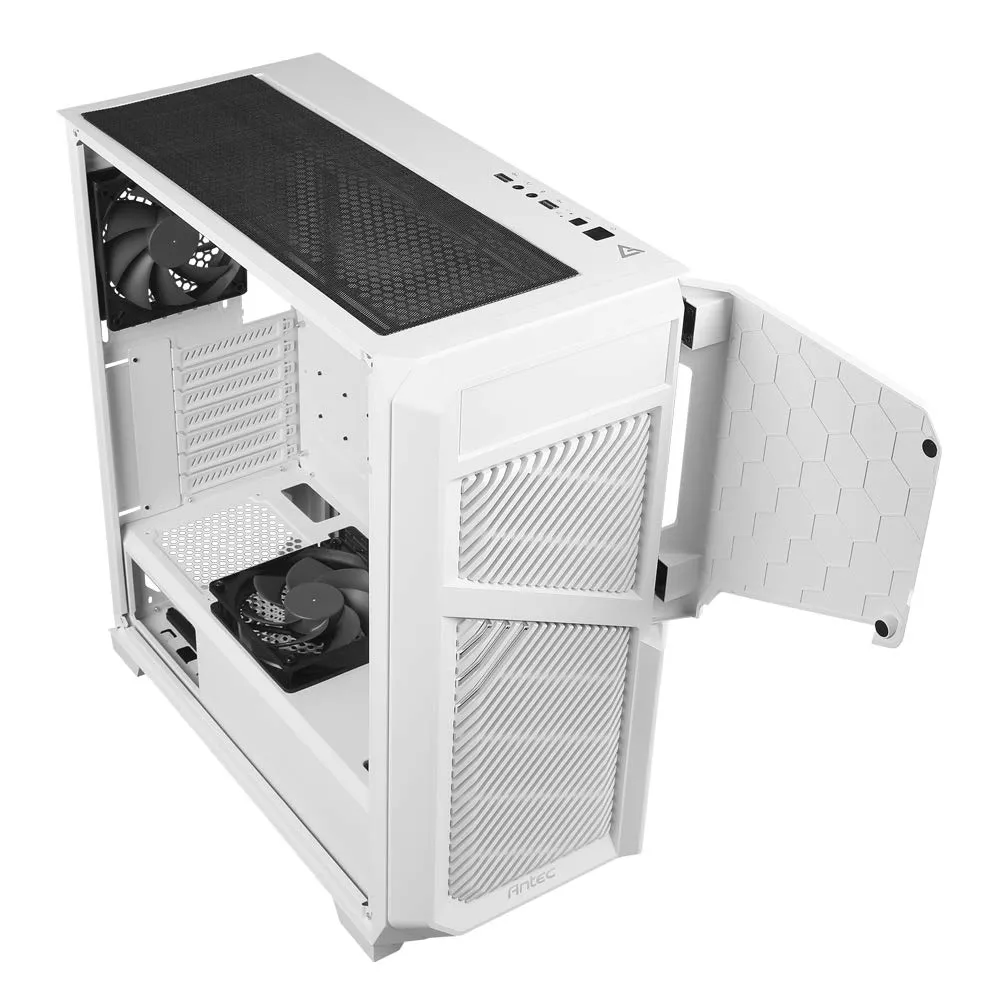

ANTEC DARK PHANTOM DP502 FLUX WHITE (ATX) MID TOWER CABINET WITH TEMPERED GLASS SIDE PANEL
The DP502 FLUX mid-tower gaming case is well equipped with an industry-leading design of advanced ventilation, taking the Antec Dark league gaming cases to the next generation.
The DP502 FLUX mid-tower gaming case is well equipped with an industry-leading design of advanced ventilation, taking the Antec Dark league gaming cases to the next generation.
Why the New Cooling Solution?
When Intel and AMD announced their latest CPUs, they all deliver remarkable performance upgrades and better productivity, it also means the functional requirement of PC equipment needs to be taken to the next level, especially the thermal performance.
To cope with the stress of enhanced heat dissipation, Antec developed a revolutionary structure for airflow, providing an improved and powerful cooling solution for your system. The F-LUX Platform.
F-LUX Platform Antec Original Cooling Solution. What is the F-LUX Platform?
The definition of FLUX is Flow Luxury.The F-LUX Platform is a new industry-leading and highly efficient design by Antec featuring an advanced case structure for excellent airflow and 5 x 120 mm fans included. A core element of the design ethos was to enhance GPU cooling performance.
Color Your System by Built-in LED Controller
You only need the LED mode button to control all the addressable LEDs.
Or you can sync it with the motherboard to enjoy more custom light effects.
Make a Green Build
7 Reusable PCI-E Slots.
Specification :
138577Dimensions 463 x 220 x 486 mm (DWH)
Form Factor Mid Tower
Materials Steel + Plastic
Mainboard Support ATX, M-ATX, ITX
Front Access & Controls Power, LED Control Button, 2 x USB3.0, HD-AUDIO
Side Panel 4 mm Tempered Glass Side Panel
Expansion & Drive Bays
Expansion Slots 7
5.25‰Û_ 1
3.5‰Û_ /2.5‰Û_ 3/2
2.5‰Û_ 3
Fan
Front 3 x 120mm/2 x 140mm
Top 3 x 120mm / 2 x 140mm (w/o ODD and w/o ODD bracket)
2 x 120mm / 2 x 140mm (w/o ODD but with ODD bracket)
2 x 120mm / 1 x 140mm(When ODD is installed)
Power Supply Shroud 2 x 120mm
Rear 1 x 120mm
Pre-installed Fans 3 x 120mm ARGB fans in front
1 x 120mm fan (Reverse Fan) on PSU shroud
& 1 x 120mm fan in rear
Radiator Support
Front 120/240/280/360mm (‰ä_ 55mm thickness when fans are installed outside of front panel)
(‰ä_ 30mm thickness when fans are installed inside of front panel)
[Max Radiator Length ‰ä_ 405mm]
Top 240/280/360mm (w/o ODD and w/o ODD bracket)
240/280mm (w/o ODD but with ODD bracket)
120mm(When ODD is installed)
[Max Radiator Length ‰ä_ 405mm]
Rear 120mm
Clearance
Max GPU Length ‰ä_ 405mm
Max CPU Cooler Height ‰ä_ 175mm
Max PSU Length ‰ä_ 205mm
Miscellaneous
Dust Filter Front / Top / Bottom / Right Hand Side
Net Weight 7.55KG
Gross Weight 8.7KG
Warranty 2 Years
