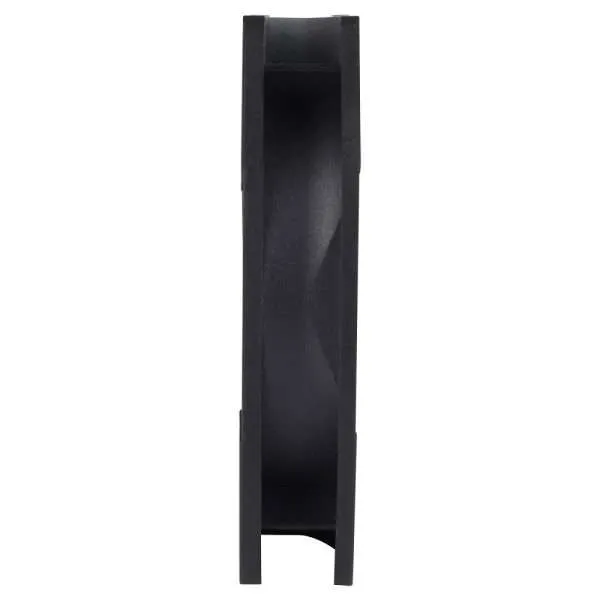

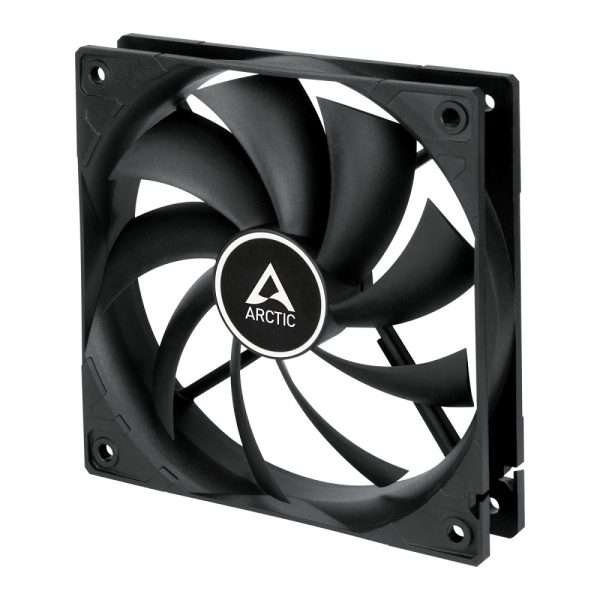

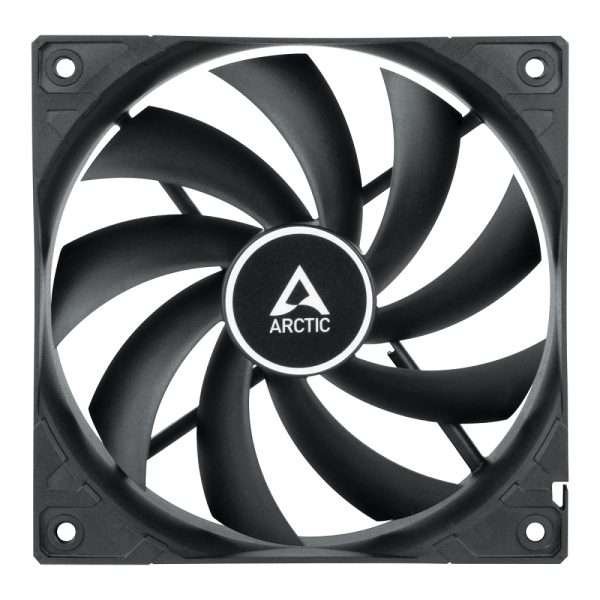

Arctic P12 PWM 120mm Case Fan Black
Optimized For Static Pressure
200-1800 RPM Fan Speed
56.3 CFM Fan Airflow
Fluid Dynamic Bearing
12 V DC Typical Voltage
Fan Speed 200 1800 rpm
Airflow 56.3 CFM/ 95.65 m_/h
Static Pressure 2.20 mm HO
Noise Level 0.3 Sone
Connector 4-Pin-Connector
OVERVIEW
The Arctic P12 PWM Case Fan features a focused airstream and thus a high static pressure. This 120mm PWM fan guarantees highly efficient cooling, even with increased air resistance. Therefore, the Arctic P12 PWM Case Fan is particularly suitable for use on heatsinks and radiators.
The Arctic P12 PWM Case Fan۪s motor is powered by the latest generation PWM IC, which allows the new Arctic P12 PWM to run more efficiently than its predecessors. It saves energy without compromising on performance. This way, less heat is developed as well as less noise carried and you can enjoy the long service life of your cooler.
TECHNICAL SPECIFICATIONS
Performance_
Fan Speed_ 200 1800 rpm
Airflow_ 56.3 CFM/ 95.65 m_/h
Static Pressure_ 2.20 mm HO
Noise Level_ 0.3 Sone
Operating Ambient Temperature_ 0 40 C
Fan_
Fan Frame_ Standard
Control Type_ PWM PST
Connector_ 4-Pin-Connector
Fan Bearing_ Fluid Dynamic Bearing
Electric Characteristics_
Typical Voltage_ 12 V DC
Starting Voltage_ 3.9 V
Current/ Voltage_ 0.08 A / 12 V
Cable Lenght_ 400 mm
Size & Weight_
Length_ 120 mm
Width_ 120 mm
Height_ 25 mm
Weight_ 139 g
Packaging_
Width_ 123 mm
Height_ 123 mm
Length_ 27 mm
Weight_ 0.17 kg
Specification: Arctic P12 PWM 120mm Case Fan Black
Product Type_
CPU Coolers
Brand_
Arctic
COLOR_
BLACK
COOLER TYPE_
AIR COOLER
FAN SIZE_
120 mm
LIGHTING_
NONE
FAN CONTROLLER_
NO
IDEAL FOR GAMING_
NO
WARRANTY_
6 Years Warranty
