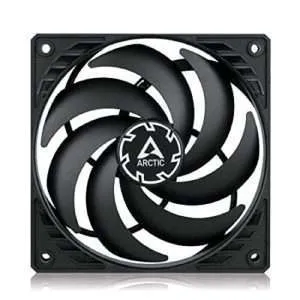

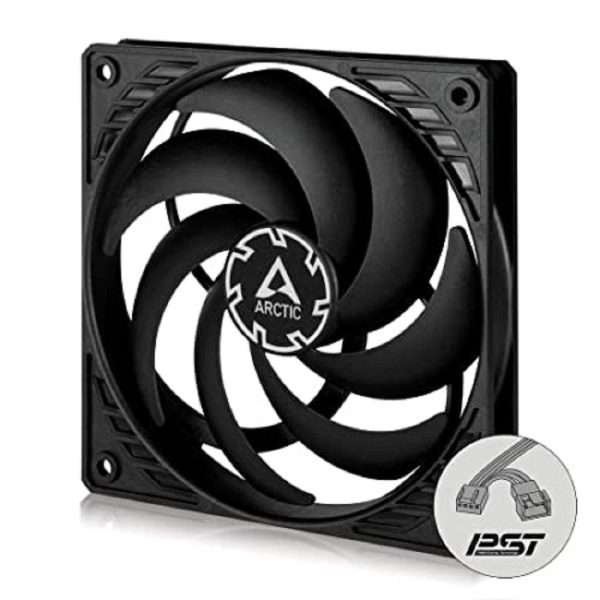

Arctic P12 Slim PWM PST Cabinet Fan
300-2100 rpm RPM Fan Speed
42.1 CFM Fan Airflow
0.3 Sone Noise Level
Dual Ball Bearing
4-Pin Connector + 4-Pin Socket
Fan Speed 300 2100 rpm
Airflow 42.1 CFM
Static Pressure 1.45 mm HO
Noise Level 0.3 Sone
Connector 4-Pin-Connector + 4-Pin-Socket
OVERVIEW
The Arctic P12 Slim PWM PST Cabinet Fan has a standard 120mm case fan with a thickness of 25mm, the P12 Slim PWM PST has a mounting depth of only 15mm. The fan design of the P12 Slim PWM PST is optimized for concentrated airflow, it generates high static pressure and the fan enables highly efficient cooling and good airflow even with increased air resistance.
The new Arctic motor generates significantly less frictional heat than its predecessors and existing competing models. As a result, the coil temperature is reduced by 20 degrees, the service life is quadrupled, and the low friction loss ensures more efficient operation. Arctic P12 Slim PWM PST speed can be reduced to a standstill via PWM. The Arctic P12 Slim PWM allows for customized installation in the PST case. It can suck in the cold air as an intake fan and expel hot air as an exhaust fan.
TECHNICAL SPECIFICATIONS
Performance_
Fan Speed_ 300 2100 rpm
Airflow_ 42.1 CFM/71.53 m_/h
Static Pressure_ 1.45 mm HO
Noise Level_ 0.3 Sone
Fan_
Fan Frame_ Standard
Control Type_ PWM PST
Connector_ 4-Pin-Connector + 4-Pin-Socket
Fan Bearing_ Fluid Dynamic Bearing
Operating Ambient Temperature_ 0 40 C
Electric Characteristics_
Typical Voltage_ 12 V DC
Starting Voltage_ 5 V
Current/ Voltage_ 0.12 A / 12 V
Cable Lenght_ 400 mm

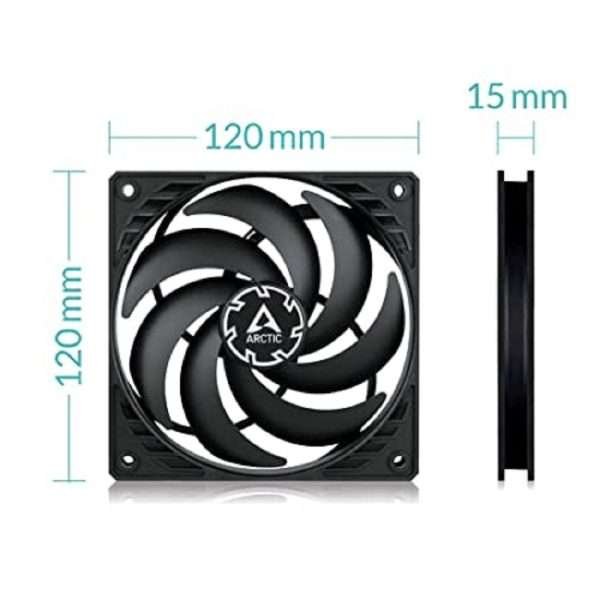

Dimension & Weight_
Length_ 120 mm
Width_ 120 mm
Height_ 15mm
Weight_ 85 gm
Packaging_
Width_ 127 mm
Height_ 16 mm
Length_ 123 mm
Weight_ 0.11 kg
Specification: Arctic P12 Slim PWM PST Cabinet Fan
Product Type_
CPU Coolers
Brand_
Arctic
COLOR_
BLACK
COOLER TYPE_
AIR COOLER
FAN SIZE_
120 mm
FAN CONTROLLER_
NO
LIGHTING_
NONE
IDEAL FOR GAMING_
NO
WARRANTY_
6 Years Warranty
Reviews
There are no reviews yet.
