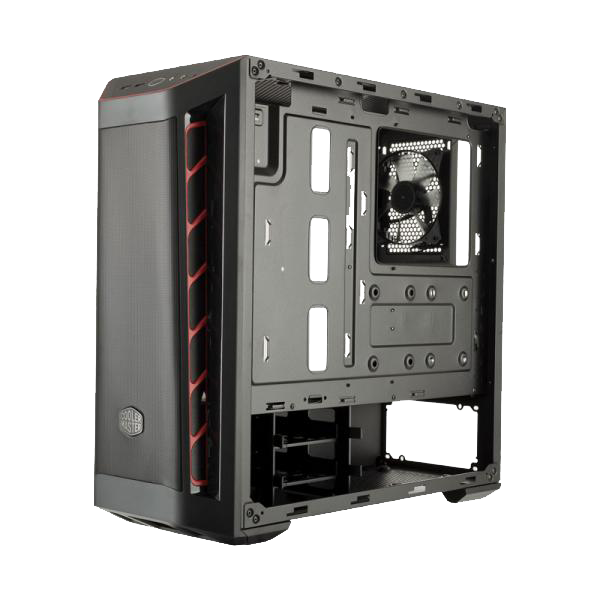

Cooler Master MasterBox MB511 (ATX) Mid Tower Cabinet MCB-B511D-KANN-S00

Mesh Front Panel
The fine mesh front panel filters dust while offering efficient airflow for demanding systems.

Excellent Thermal Performance
Optimized airflow due to the semi-meshed front panel and ventilation holes on top of the case.

Fan And Radiator Support
Front: Three 120mm or two 140mm fans and up to a 360mm radiator with a maximum thickness of 50mm without fans.
Top: Two 120mm or two 140mm fans and supports a 120mm or a 240mm radiator.
Rear: One 120mm fan or radiator. All to ensure you don‰Ûªt have to compromise on performance.

Edge-to-edge Transparent Side Panel
Showcase your build through the transparent side panel.

Expanding The Possibilities
The spacious interior fits all standard motherboards for your gaming needs.

Recommended reading:Cooler Master Elite 310C (Black) Mid Tower Cabinet RC-310C-KKN3-U3

Main Components Clearance
The MB511 case supports CPU Coolers up to a height of 165mm, Graphic cards up to a length of 410mm and Power Supplies up to a length of 180mm.

Specification :

Model Number MCB-B511D-KANN-S00 (Red)
Available Color(s) Black, *partial region on front panel: red/black/white/blue
Materials Steel, Plastic
Dimensions (LxWxH) 496 x 217 x 468 mm
Motherboard Support ATX, Micro ATX, Mini ITX
Expansion Slots 7
5.25‰Û_ Drive Bays No
2.5‰Û_ / 3.5‰Û_ Drive Bays (combo) 2
Drive Bays SSD 5 (Max. 6)
I/O Panel 2x USB 3.0, Audio In & Out (supports HD audio)
Pre-installed Fans Rear 1x 120mm (Black) Fan
Fan Support Top 2 x 120mm, 140mm x 2
Fan Support Front 120mm x 3, 140mm x 2
Fan Support Rear 120mm x 1
Liquid Cooling Support Front 120mm, 140mm, 240mm, 280mm, 360mm
Liquid Cooling Support Top 120mm, 240mm
Liquid Cooling Support Rear 120mm
Clearance CPU Cooler 165mm / 6.49‰Û_
Clearance PSU 180mm/7.1‰Û_
Clearance GFX 410mm / 16.1‰Û_
Cable Routing Behind Motherboard Tray 19mm / 0.74‰Û_
Dust Filters Front, Top, Bottom
Power Supply Support Bottom Mount, ATX
MasterBox Series
Size Mid Tower
