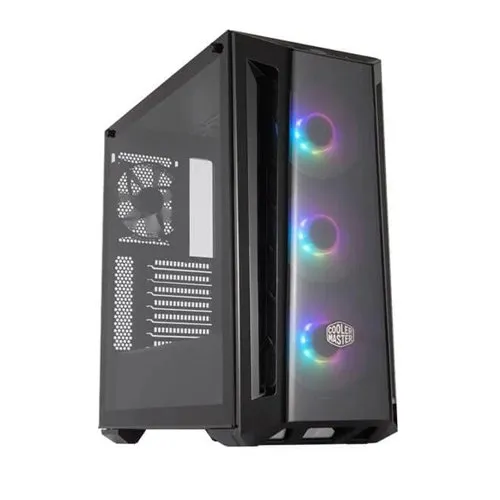

Cooler Master MasterBox MB520 ARGB (ATX) Mid Tower Cabinet MCB-B520-KGNN-RGA
A LOOK THROUGH THE DARKMIRROR
Showing off your rig through a smoked front panel is something you didn‰Ûªt know you needed. The DarkMirror front panel enriches the contrast from hardware lighting, creating a picturesque display of the internal components. To cool gaming systems built inside, mesh ventilation is found on the entire length of the front panel sides, ensuring that the three included ARGB fans are fed with a considerable amount of air.
If you‰Ûªre thinking about thermal upgrades, the MasterBox MB520 ARGB supports up to seven fans and front and rear liquid cooling for high-demand builds. Paired with a tempered glass side panel and additional top ventilation, your build can look, and play, exactly as you dreamed it would.
DarkMirror Front Panel
Shade light through the DarkMirror front panel for a sharper contrast of the ARGB fans.
Mesh Intakes
MESH INTAKES
Large, mesh intakes on each side of the front panel provide considerable airflow to system.
ARGB Lighting System
ARGB LIGHTING SYSTEM
Three pre-installed ARGB fans can be managed by either the motherboard or an included controller, connected by the included splitter, to create a comprehensive ARGB lighting system.
TEMPERED GLASS SIDE PANEL
Gaming hardware, cooling components, and the pure pride of the builder is shown in panoramic view through an edge-to-edge tempered glass side panel.
Versatile Cooling Options
Support for up to seven 120mm fans and dual 360mm radiators on the top and front panel ensure that even the most extreme systems stay cool.
ARGB Controller‰ÛÜ
‰ÛÜThe small ARGB Controller is a mini-sized controller that allows your Addressable RGB such as fans and LED strips to be powered and controlled even in PC systems without an A-RGB capable motherboard.‰ÛÜ
The controller comes with 14 lighting presets to make full use of the Addressable LEDs in the system and also allows to be completely switched off by long pressing its button.‰ÛÜ
It is also possible to attach any external 2pin button to it to be able to switch presets without having to open the system. For ease of use, Cooler Master allows the RESET button to be optionally connected to the controller and used as an external ARGB preset switch button.
Specifications
Specifications
Model Number MCB-B520-KGNN-RGA
Series MasterBox Series
Size Mid Tower
Available Color(s) Black
Materials Steel, Plastic, Tempered Glass
Dimensions (L x W x H) 496 x 217 x 469 mm
Weight 6.59 kg
Motherboard Support Mini ITX, Micro ATX, ATX, E-ATX*, SSI CEB*, (*support for up to 12‰Û_ x 10.7‰Û_, will limit cable management features)
Expansion Slots 7
5.25‰Û_ Drive Bays N/A
2.5‰Û_ / 3.5‰Û_ Drive Bays (combo) 2 (Max.2)
2.5‰Û_ Drive Bays 4 (Max.6)
I/O Panel 2x USB 3.2 Gen 1 (formerly USB 3.0), 1x 3.5mm Audio Jack, 1x 3.5mm Mic Jack, 1x ARGB Controller, 1x ARGB 2-to-3 splitter
Pre-installed Fans Front 3x 120mm ARGB Fans
Pre-installed Fans Rear 1x 120mm (Black)
Fan Support Top 3x 120mm, 2x 140mm
Fan Support Front 3x 120mm, 2x 140mm
Fan Support Rear 1x 120mm
Radiator Support Top 120mm, 240mm, 360mm, (44mm max motherboard component height)
Radiator Support Front 120mm, 140mm, 240mm, 280mm, 360mm, (75mm clearance)
Radiator Support Rear 120mm
Clearance CPU Cooler 165mm/6.49‰Û_
Clearance PSU 180mm/7.08‰Û_
Clearance GFX 410mm/16.1‰Û_
Cable Routing 19~27mm
Dust Filters Top, Front, Bottom
Power Supply Support Bottom mount, ATX
Warranty 2 Years
