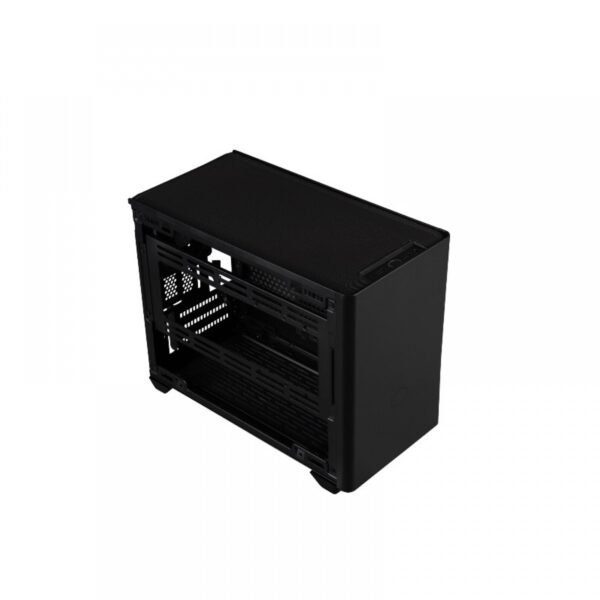

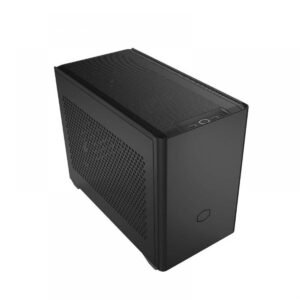

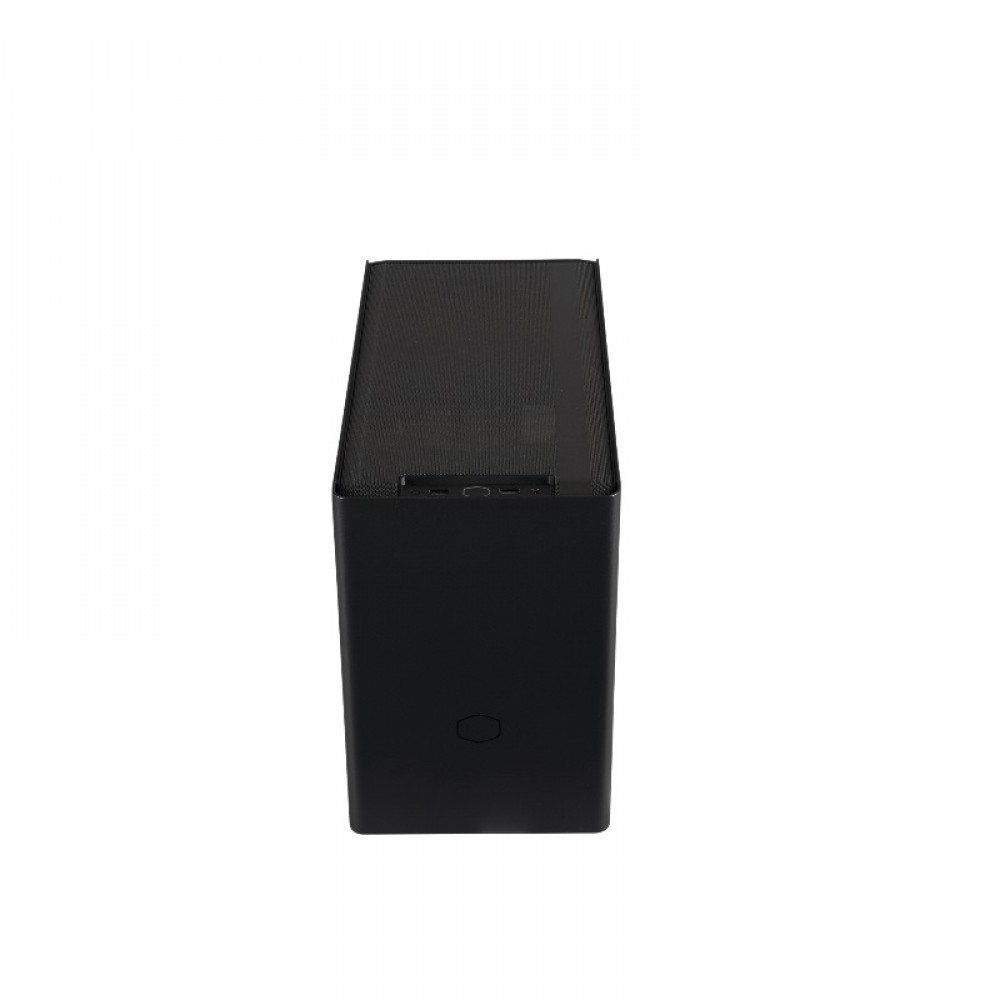

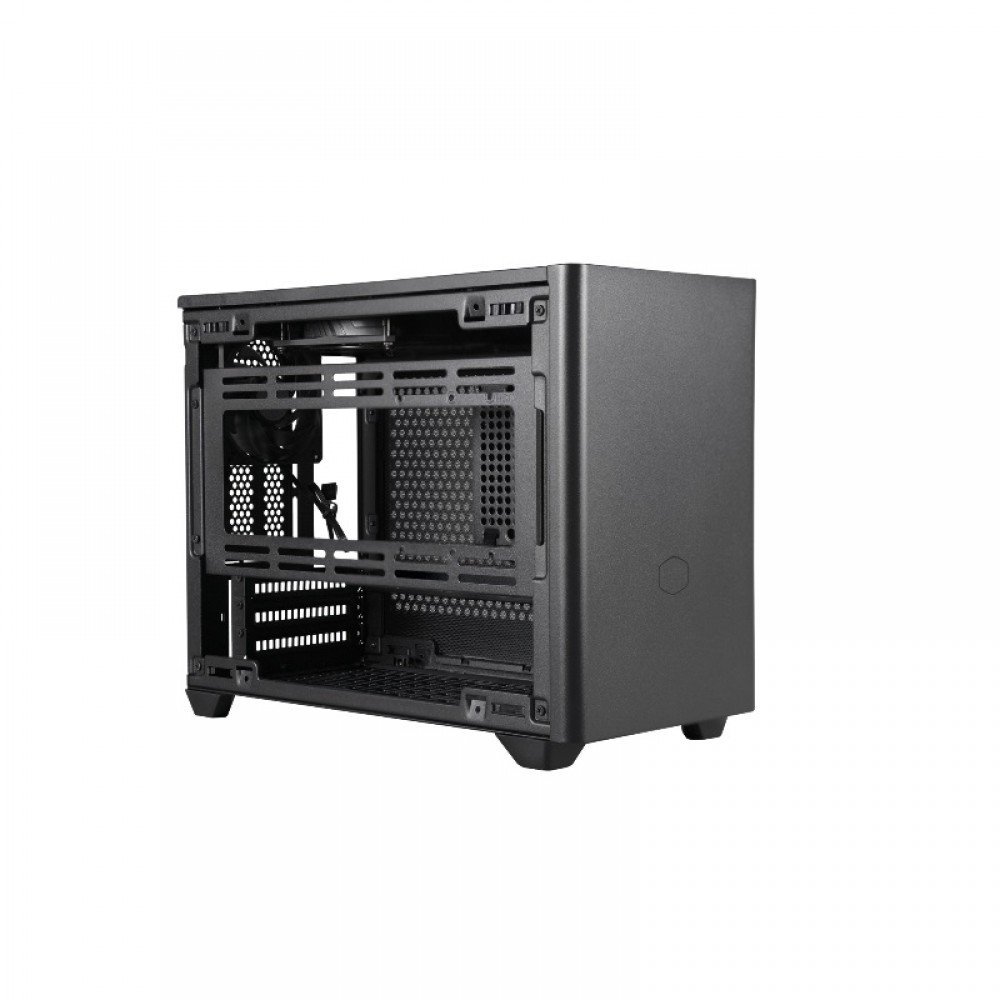

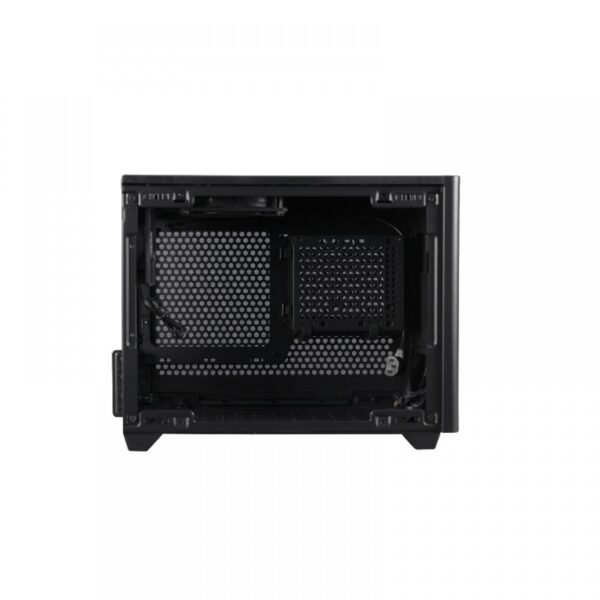

Cooler Master MasterBox NR200 Cabinet (Black) MCB-NR200-KNNN-S00
The MasterBox NR200 takes all of the features found in a core performance ATX chassis and efficiently utilizes them in a space less than half the volume. Every feature is thoughtfully laid out in the 18-liter case to maximize component compatibility, ease of use, and thermal efficiency.
A core case taking less space
The MasterBox NR200 takes all of the features found in a core performance ATX chassis and efficiently utilizes them in a space less than half the volume. Every feature is thoughtfully laid out in the 18-liter case to maximize component compatibility, ease of use, and thermal efficiency.
Open ventilation and multiple fan mounts bring airflow where it needed, while generous watercooling and aircooling clearances allow the fitment of coolers that can take advantage of all the airflow. Ample clearance for long, triple-slot graphics cards means no sacrifices are needed in GPU power to take advantage of small form factor sizing. The frame is wrapped in a sleek and tasteful steel chassis that blends in perfectly on top of desk.
Unrestricted Cooling Potential
The NR200 can house up to 7 fans in total for every cooling configuration imaginable. Five panels are flanked with ventilation for unrestricted airflow. One 92mm and one 120mm Sickleflow fan are included. The compact structure can efficiently house CPU coolers up to 155mm in height and radiators up to 280mm in length, so even the hottest running hardware can‰Ûªt be held back.
Triple-slot GPU support
Triple slot GPUs are supported with a maximum length of 330mm and maximum width of 156mm allowing the fitment of high-end graphics cards. The rear ventilation contains PCI slots to allow for vertical GPU mounting to better showcase the graphics card (PCI riser cable sold separately)
Easy, Tool-free access
All external panels and top mounted fans are secured with pins for easy removal, facilitating quick access to the internals without the use of tools.
360 Degree Accessibility
Every panel and frame part of the NR200 frame can be dismantled. Screws are used to secure the frame parts to allow advanced disassembly and multiple angles to easily work inside of the chassis.
High quality materials
Thick, powder coated SGCC steel keeps the fit and finish of the chassis clean and durable even with harsh traveling conditions.
Out-of-the-box Custom Cooling Support
Two liquid cooling pump locations alongside side and bottom radiator mounting locations allow for powerful custom water-cooled builds inside a compact enclosure.
Multiple motherboard support options
Compatible with Mini-ITX and Mini DTX. The PSU can be front mounted for extra motherboard clearance with a maximum size of 244 x 226 mm.
Looking to show off more?
Added tempered glass panel
Custom length riser cable
2x 120mm SickleFlow fans instead of 1x 92mm + 1x 120mm fan
Customization
3D printable feet
During the design phase we had created several variants for the case feet design. Following numerous iterations, the launch design was chosen, but we thought ‰ÛÏwhy not share the iterations with our users?‰Û� The team unanimously agreed with this direction.
As a result, end users can 3D print a selection of different shapes and sizes, and even choose the color based on the filament they print with.
Customization
3D printable ATX PSU bracket
Higher Position:
Incompatible with front-most top mounted fan. 140/150mm are recommended for maximum compatibility with GPUs longer than 240mm.
Lower Position:
Fully compatible with 2x 120mm fans in the top panel.
Max GPU length supported: 240mm
Sickleflow PWM fans included
Newly Optimized blade design with updated curve that provides best balance between airflow and static pressure to take the heat away while remain extremely silence.
Specifications
Model Number MCB-NR200-KNNN-S00
Series MasterBox Series
Size Mini ITX
Available Color(s) Black
Materials Steel, Plastic, Mesh
Dimensions (L x W x H) 376 x 185 x 292mm incl. Protrusions
Volume (exlc. Protrusions) 18.25L
Motherboard Support Mini DTX, Mini ITX, Max MB size: 244 x 226mm (L x H)
Expansion Slots 3
5.25‰Û_ Drive Bays 0
3.5‰Û_ Drive Bays 1 (Max. 2)
2.5‰Û_ / 3.5‰Û_ Drive Bays (combo) 1
2.5‰Û_ Drive Bays 2 (Max. 3)
I/O Panel 2x USB 3.2 Gen 1 Type-A, 1x 3.5mm Headset Jack (Audio+Mic)
Pre-installed Fans Top 1x 120mm 650-1800RPM PWM (SickleFlow)
Pre-installed Fans Front N/A
Pre-installed Fans Rear 1x 92mm 650-2300RPM PWM (SickleFlow)
Pre-installed Fans Bottom N/A
Fan Support Top 2x 120mm
Fan Support Rear 1x 92mm
Fan Support Bottom 2x 120mm (recommended slim fans for GPUs wider than 2.5 PCI slots)
Fan Support Side 2x 120/140mm
Radiator Support Top N/A
Radiator Support Rear 92mm (not compatible with vertical GPU installation)
Radiator Support Bottom 120mm, 240mm, (recommended for custom loops only)
Radiator Support Side 120mm, 140mm, 240mm, 280mm, (not compatible with vertical GPU installation)
Clearance CPU Cooler 155mm, 76mm (GPU in vertical position)
Clearance PSU 130mm
Clearance GFX L: 330mm (incl. power connector), H: 156mm (incl. power connector), W: 60mm (triple slot)
Dust Filters Top, Bottom, Left side, Right side
Power Supply Support SFX, SFX-L
Weight 4.6 kg / 10.1 lbs
Warranty 2 Years
