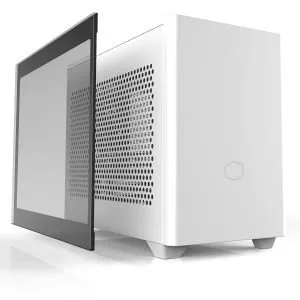

Cooler Master MasterBox NR200P Cabinet (White)
The MasterBox NR200P uses features normally found in stylish, high-end ATX cases and cleverly utilizes space-saving measures to create a chassis taking up less than half the volume. Every feature is thoughtfully laid out in an 18-liter space to maximize component compatibility,
Style without sacrifice
The MasterBox NR200P uses features normally found in stylish, high-end ATX cases and cleverly utilizes space-saving measures to create a chassis taking up less than half the volume. Every feature is thoughtfully laid out in an 18-liter space to maximize component compatibility, thermal efficiency, and ease of assembly.
Keep cool with a highly vented side panel, or look cooler with a crystal-clear tempered glass panel; both are included to satisfy performance and style preferences. Fit large graphics cards in the 3-slot capable NR200P, or utilize the two vertical cards slots with the included PCI riser to turn graphics cards and heads by making the GPU the centerpiece of the PC. Seven possible fan mounts, ample ventilation, and generous liquid and air-cooler clearances keep even the most powerful systems running at their optimum temperatures and speeds. The chassis frame is wrapped in a sleek and tasteful powder-coated steel chassis that makes a statement on a desk.
Limited Size, Unlimited Options
The NR200P includes many features found in larger ATX chassis while retaining a space-efficient form factor. The NR200P comes with the choice of a vented steel side panel for unrestricted airflow, or a crystal-clear tempered glass side panel to reveal the beauty of a computing beast. A PCI Riser is included for vertical GPU installation to better showcase it against the glass, or to feed it fresh air from the side with the vented panel.
Unrestricted Cooling Potential
The NR200P can house up to 7 fans in total for every cooling configuration imaginable. Two 120mm Sickleflow fan are included. The compact structure can efficiently house CPU coolers up to 155mm in height and radiators up to 280mm in length, so even the hottest running hardware can‰Ûªt be held back.
Triple-slot GPU support and Included Vertical Riser Cable
Triple slot GPUs are supported with a maximum length of 330mm and maximum width of 156mm allowing the fitment of large high-end graphics cards. A custom-sized riser cable is included to mount a graphics card vertically to showcase it, or allow radiator mounting at the bottom of the chassis to keep the system running as cool as it looks.
Easy, Tool-free access
All external panels, including the tempered glass and top mounted fans are secured with pins for easy removal, facilitating quick access to the internals without the use of tools.
360 Degree Accessibility
Every panel and frame part of the NR200P can be dismantled. Screws are used to secure the frame parts to allow advanced disassembly and multiple angles to easily work inside of the chassis.
High quality materials
Thick, powder coated SGCC steel keeps the fit and finish of the chassis clean and durable even with harsh traveling conditions
Out-of-the-box Custom Cooling Support
Two liquid cooling pump locations alongside side and bottom radiator mounting locations allow for powerful, custom water-cooled builds inside a compact enclosure.
Multiple motherboard support options
Compatible with Mini-ITX and Mini DTX. The PSU can be front-mounted for extra motherboard clearance with a maximum space of 244 x 226 mm.
Customization 3D printable feet
During the design phase we had created several variants for the case feet design. Following numerous iterations, the launch design was chosen, but we thought ‰ÛÏwhy not share the iterations with our users?‰Û� The team unanimously agreed with this direction.
As a result, end users can 3D print a selection of different shapes and sizes, and even choose the color based on the filament they print with.
Sickleflow PWM fans included
Newly Optimized blade design with updated curve that provides best balance between airflow and static pressure to take the heat away while remain extremely silence.
Specifications
Model Number MCB-NR200P-WGNN-S00
Series MasterBox Series
Size Mini ITX
Available Color(s) Black
Materials Steel, Plastic, Mesh, Tempered Glass
Dimensions (L x W x H) 376 x 185 x 292mm incl. Protrusions, 360 x 185 x 274mm excl. Protrusions
Volume (exlc. Protrusions) 18.25L
Motherboard Support Mini DTX, Mini ITX, Max MB size: 244 x 226mm (L x H)
Expansion Slots 3
5.25‰Û_ Drive Bays 0
3.5‰Û_ Drive Bays 1 (Max. 2)
2.5‰Û_ / 3.5‰Û_ Drive Bays (combo) 1
2.5‰Û_ Drive Bays 2 (Max. 3)
I/O Panel 2x USB 3.2 Gen 1 Type-A, 1x 3.5mm Headset Jack (Audio+Mic)
Pre-installed Fans Top 2x 120mm 650-1800RPM PWM (SickleFlow)
Pre-installed Fans Front N/A
Pre-installed Fans Rear N/A
Pre-installed Fans Bottom N/A
Fan Support Top 2x 120mm
Fan Support Rear 1x 92mm
Fan Support Bottom 2x 120mm (recommended slim fans for GPUs wider than 2.5 PCI slots)
Fan Support Side 2x 120/140mm
Radiator Support Top N/A
Radiator Support Rear 92mm (not compatible with vertical GPU installation)
Radiator Support Bottom 120mm, 240mm, (recommended for custom loops only)
Radiator Support Side 120mm, 140mm, 240mm, 280mm, (not compatible with vertical GPU installation)
Clearance CPU Cooler 76mm (GPU in vertical position), 153mm (tempered glass side panel)
Clearance PSU 130mm
Clearance GFX L: 330mm (incl. power connector), H: 156mm (incl. power connector), W: 60mm (triple slot)
Dust Filters Top, Bottom, Left side, Right side
Power Supply Support SFX, SFX-L
Accessories 1x PCIe 3.0 x16 riser cable
Warranty 2 Years
Note Single slot water-cooler GPUs or vertically mounted GPUs are recommended when using bottom radiator position, This product is only compatible for devices that support the PCI-E 3.0 specification. If you use this product with a motherboard that supports PCI-E 4.0, please enter into BIOS option and select PCI-E 3.0 before installation.
