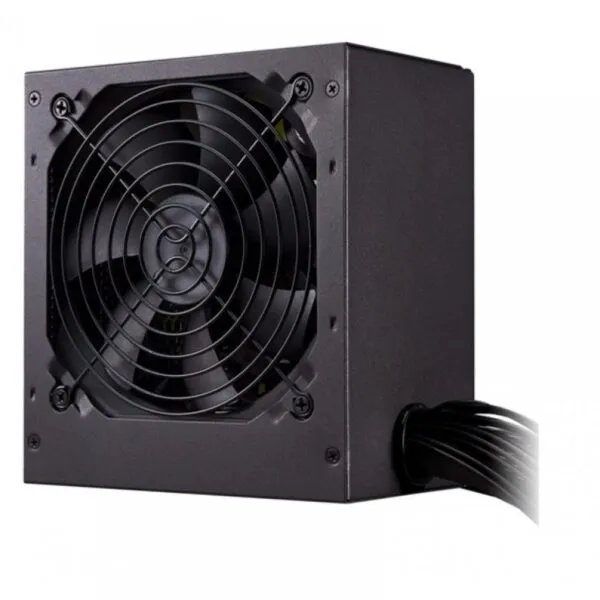

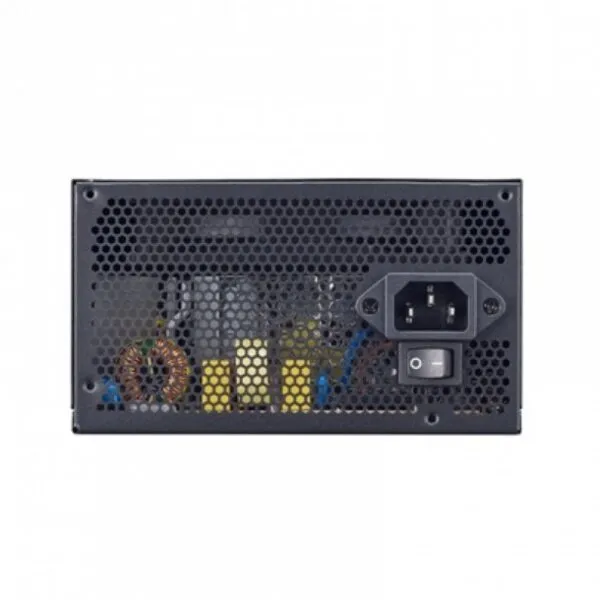

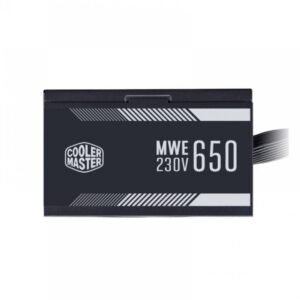

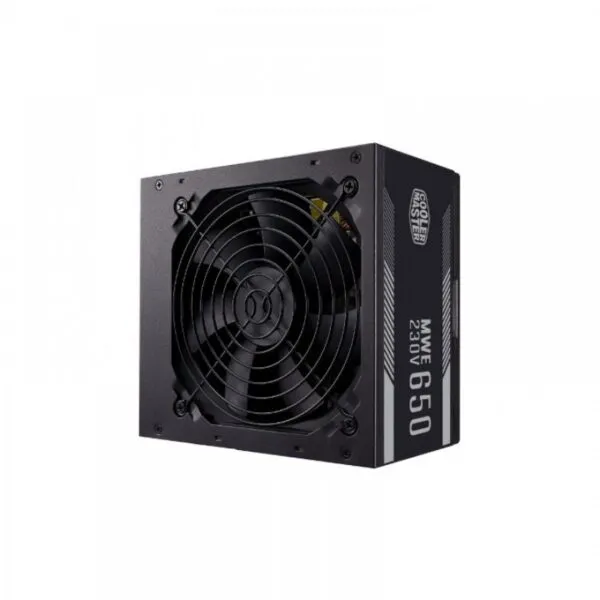

Cooler Master MWE 650 WHITE 230V V2 650 Watt 80 PLUS Certified PSU MPE-6501-ACABW-IN
80 PLUS STANDARD 230V EU CERTIFIED POWER SUPPLY
80 PLUS Standard 230V EU Certified
120mm HDB Fan
DC-to-DC Technology
Single +12V Rail
Silent Mode
Flat Black Cables
80 PLUS STANDARD 230V EU CERTIFIED POWER SUPPLY
80 PLUS Standard 230V EU Certified
120mm HDB Fan
DC-to-DC Technology
Single +12V Rail
Silent Mode
Flat Black Cables
80 PLUS STANDARD 230V EU CERTIFIED
It important to understand what efficiency is and what the ratings actually mean. The efficiency rating indicates how much power is retained and/or lost when transferring it from the wall to your components. It does not indicate the overall quality of the PSU. A PSU doesn‰Ûªt need an 80 PLUS Gold rating to be safe and reliable. And a PSU with an 80 PLUS Gold rating isn‰Ûªt necessarily either of those things. The MWE White guarantees a typical efficiency of 85% while being both safe and reliable.

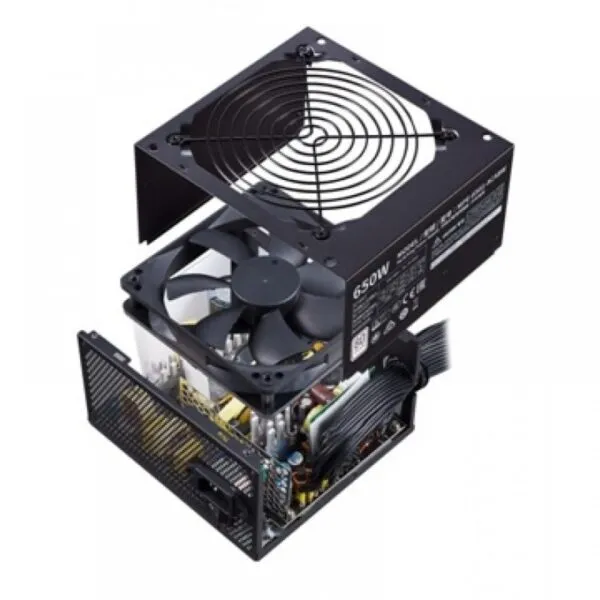

120MM HDB FAN
The constant struggle between cooling and noise is as old as the consumer PC industry itself. Keeping your components cool without having to hear about it while you work is still one of the greatest challenges for all fan based cooling technologies. The MWE White solution to this problem is a thermally sensitive 120mm HDB fan. It spins based on the system temperature, constantly adjusting to keep your PSU running smoothly and safely with the minimum amount of noise required.
SINGLE +12V RAIL
Getting power from the wall to the PSU and then to your components is a tricky situation. The power comes in one voltage level, but your components need a different one. That power has to first be transferred to/through a converter in order to make it safe for your parts to use without overloading. The lines/rails used to initially move power from the wall to the converter need to be reliable and consistent to ensure your system overall performance. That why the MWE White only uses one +12V rail for this process. This way all the components in your system are constantly fed the same power from the same source in order to guarantee consistency between all connections.
DC-TO-DC CIRCUIT DESIGN
Power comes in multiple voltage levels. The wall delivers power in one voltage level but your components each need a specific voltage to operate properly. The process of converting raw power from the wall to the multiple voltage levels your components need requires special components to complete this process quickly, efficiently, and safely. The MWE White DC-to-DC + LLC technology was painstakingly crafted to accomplish this goal. The Dual Forward circuit layout has been designed to convert 12V power to 3V and 5V levels with minimal ripple noise, 80 PLUS efficiency, and reduced risk to your connected components.
SILENT MODE
The MWE White platform has a built in silent mode for low wattage operation. While your system is in standby mode or running at lower loads, the fan will not spin. This ensures complete silence during casual operation. Once your system passes the load threshold, the 120mm HDB fan will activate automatically and cool the unit appropriately based on system use and needs.
FLAT BLACK CABLES
For many PC Builders with aesthetics in mind, cabling can be on of the most troublesome parts of assembling a PC. Cables can be confusing, too short or too long, and they almost never look good. The MWE White uses flat and flexible black cables to help deal with these problems. These cables are more discrete and flexible, making them easier to implement into your system while taking up less space. This is especially useful for smaller cases and preserving airflow.
Specification :
ATX12V Version ATX 12V Ver. 2.52
Input Voltage 200-240Vac
80 Plus Standard 80 PLUS RATING = 80 PLUS Standard 230V EU ERP 2014 LOT 3 = Yes
Fan Speed 2400 RPM NOISE LEVEL @ 20% = 16.54 dBA NOISE LEVEL @ 50% = 26.5 dBA NOISE LEVEL @ 100% = 42.5 dBA
Input Current 5A
WATTAGE 650
Fan bearing technology HDB
Input Frequency Range 50-60Hz
Fan size (mm) 120mm
Operating Temperature* 40å¡C
PFC Active PFC
Connector* ATX 24-PIN CONNECTORS = 1 EPS 8 PIN CONNECTOR = 1 SATA CONNECTORS = 6 PERIPHERAL 4-PIN CONNECTORS = 3 PCI-E 6+2 PIN CONNECTORS = 4
Power Good Signal 100-500ms
Hold Up Time >14ms at 100% full load@230Vac
Efficiency 85% Typically
Modular Non Modular
MTBF >100,000 Hours
Protection OVP, OPP, SCP, UVP, OTP
Regulatory CCC, CE, TUV-RH, EAC, RCM, cTUVus, FCC, BSMI, KC, CB
Model* MPE-6501-ACABW
Series MWE Series
Dimension* 140(L) x 150(B) x 86(H) mm
