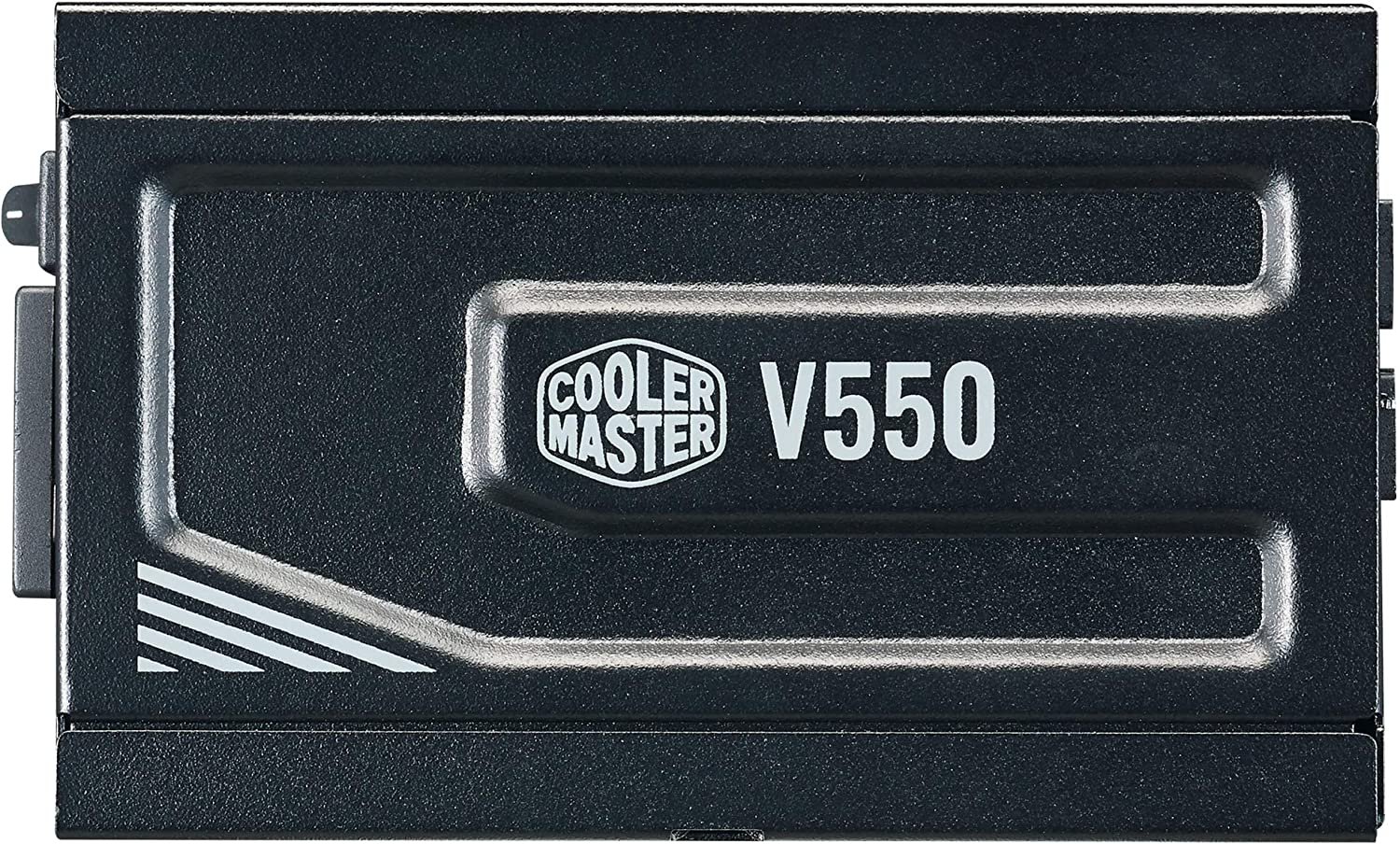

Cooler Master V550 SFX 80 Plus Gold SMPS MPY-5501-SFHAGV-IN
80 Plus Gold Efficiency
SFX Form Factor
SFX-to-ATX Bracket
80 Plus Gold Certified
Full-modular Cabling
FULL-MODULAR 80 PLUS GOLD SFX POWER SUPPLY
80 Plus Gold Efficiency
SFX Form Factor
SFX-to-ATX Bracket
80 Plus Gold Certified
Full-modular Cabling
10 Year Warranty
Make It Mini
The V SFX Gold is Cooler Master debut entry into SFX power supply units. After much demand, we have finally produced a PSU specifically made to meet the needs of mini-ITX system builders. This unit delivers top-shelf performance in 550, 650, 750, and 850 watt levels. It offers an 80 PLUS Gold efficiency rating, full-modular cabling, a 92mm FDB fan, 16AWG PCIe high efficiency cables, 100% Japanese capacitors, and a 10 year warranty. And with the included SFX-to-ATX bracket, this unit is compatible with cases ranging from mini-ITX all the way up to E-ATX systems.
SFX Form Factor
The V SFX Gold delivers the high quality performance you‰Ûªve come to expect from the V series in a mini-ITX compatible form factor. As demands for smaller systems have risen, people have struggled to find power supply units from brands and series they trust in the SFX category. Though it didn‰Ûªt come as soon as we originally planned, Cooler Master is glad to finally be able to provide a reliable, high quality PSU that compatible with smaller cases and their accompanying components. A reduction in size should never mean a reduction in quality and with the V SFX Gold, it doesn‰Ûªt. Make it mini. Make It Yours.

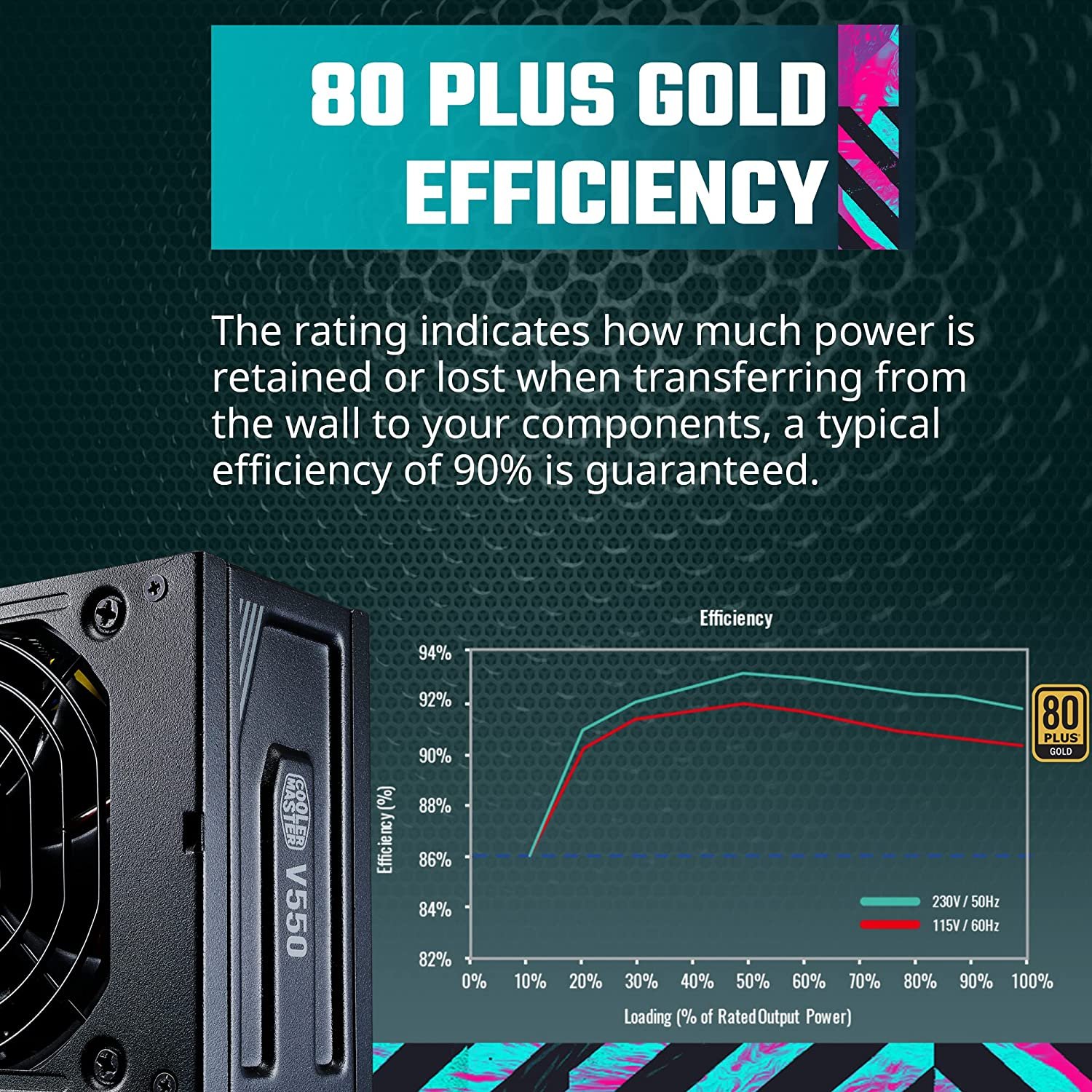

80 Plus Gold Efficiency
The efficiency of your power supply unit is important because it directly affects your system performance and your power bill. The efficiency rating does not reflect the quality or reliability of a PSU. It only reflects the unit ability to move power from the wall to your components. The higher a PSU efficiency is, the lower the total amount of power it needs to power your system. The V SFX Gold series has an 80 PLUS Gold efficiency rating, meaning it has a guaranteed typical efficiency of 90%.

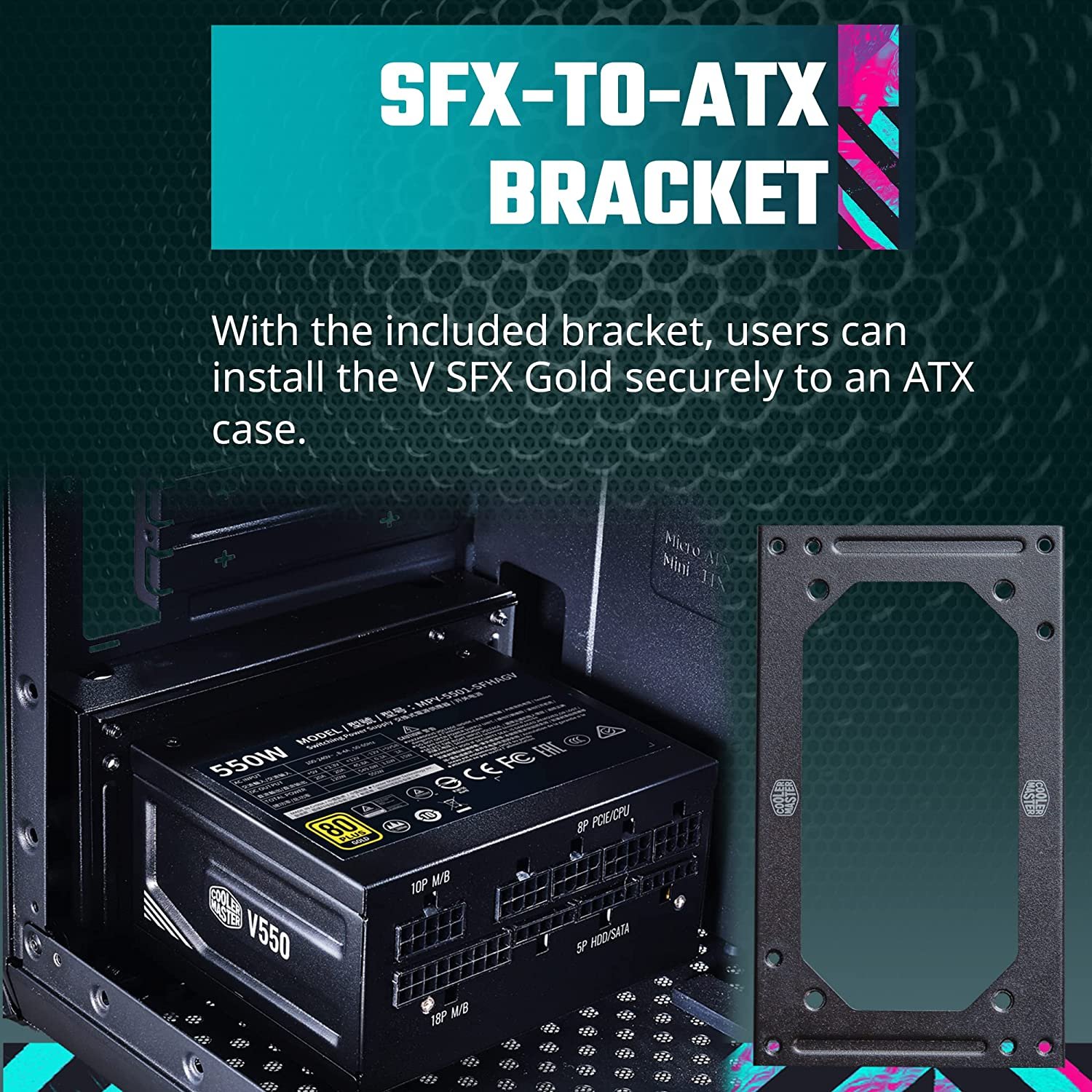

SFX-to-ATX Bracket
Though the V SFX Gold was made for mini-ITX builds, it can actually be used for any ATX case as well. With the included SFX-to-ATX bracket, you can instantly convert this unit from an SFX to an ATX PSU. That makes this product Cooler Master first power supply unit that can be used to power systems ranging from as small as mini-ITX all the way up to E-ATX motherboards. Cooler Master motto is ‰ÛÏMake It Yours‰Û� and with the V SFX Gold almost universal case compatibility, you can use this PSU to build just about any system you‰Ûªd like.

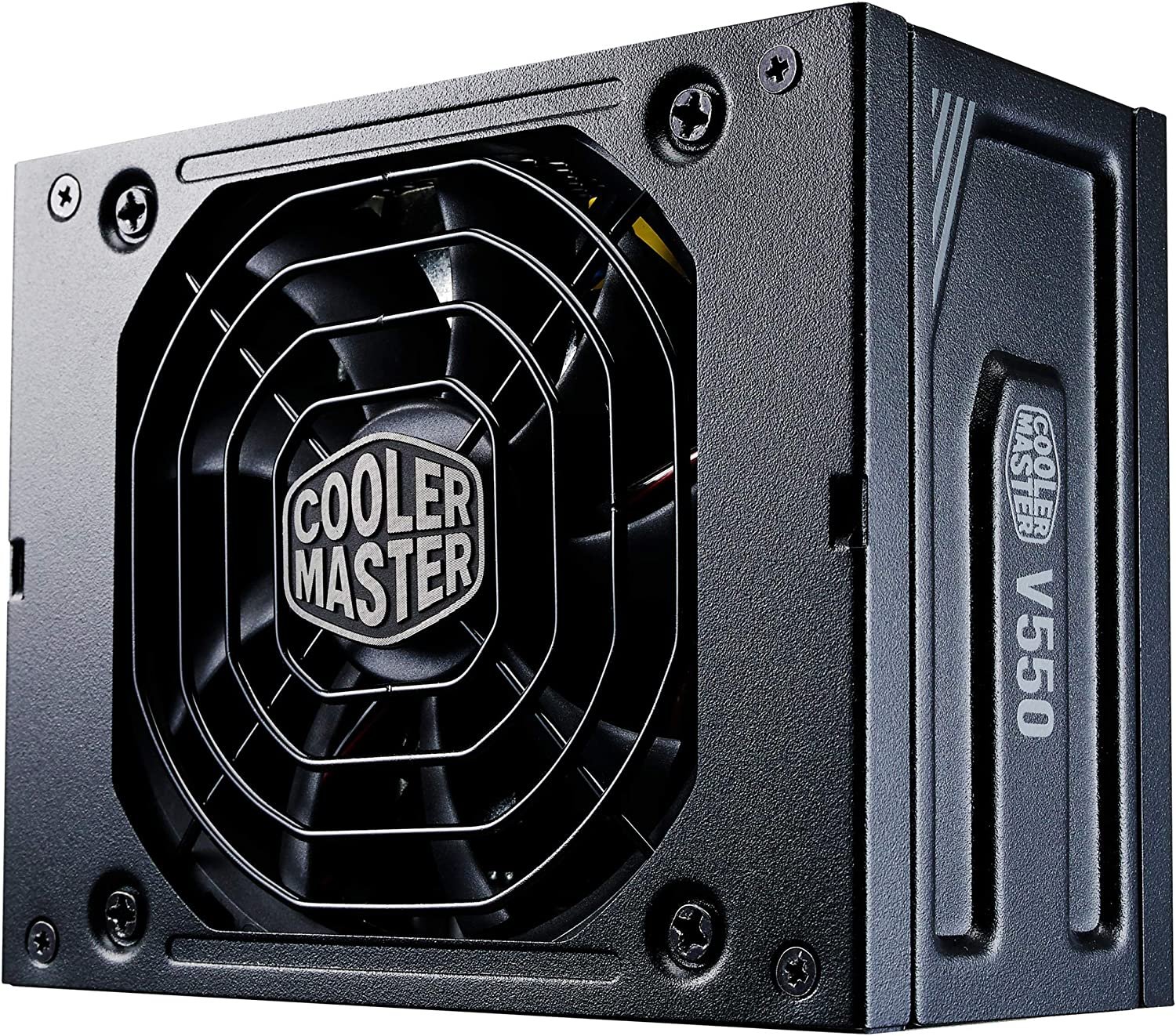

Quiet Cooling

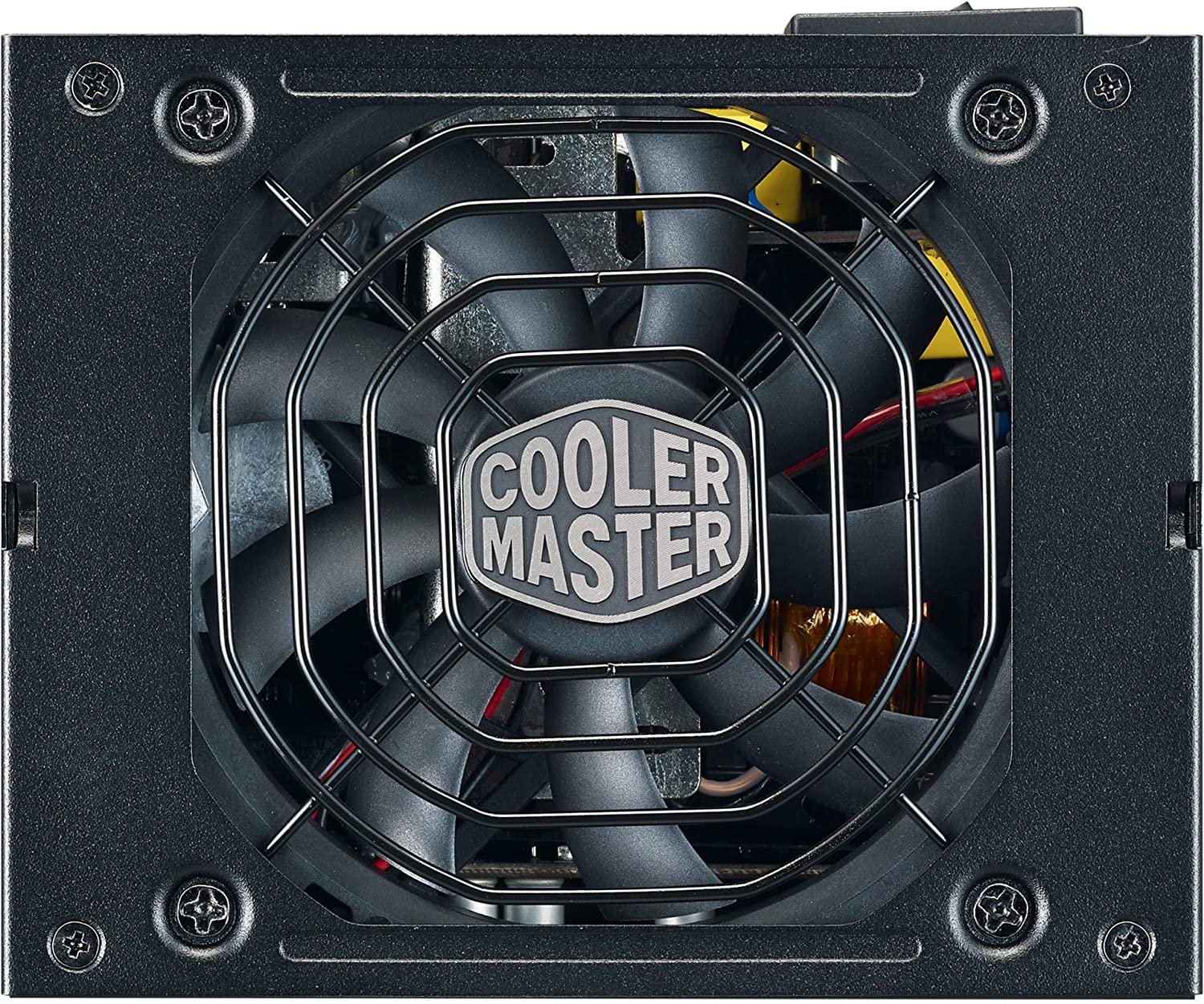

Two of the main benefits of a mini-ITX build are the reduced size requirements and reduced noise. The main cause of noise in a PSU is usually the fan. The V SFX Gold uses a 92mm FDB fan so it extremely quiet. With its small size, high efficiency, and excellent heat dissipation, the overall noise is kept to an absolute minimum.

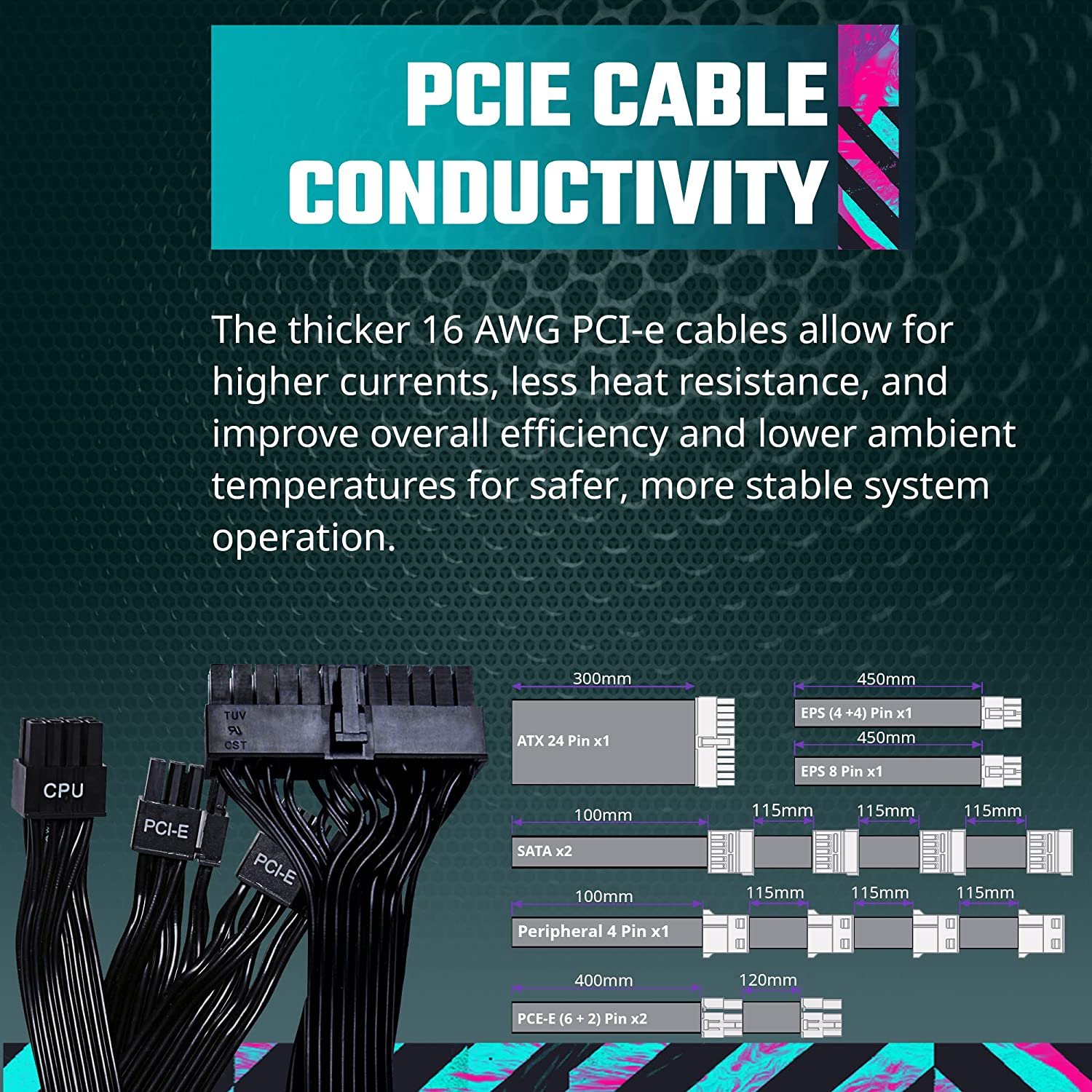

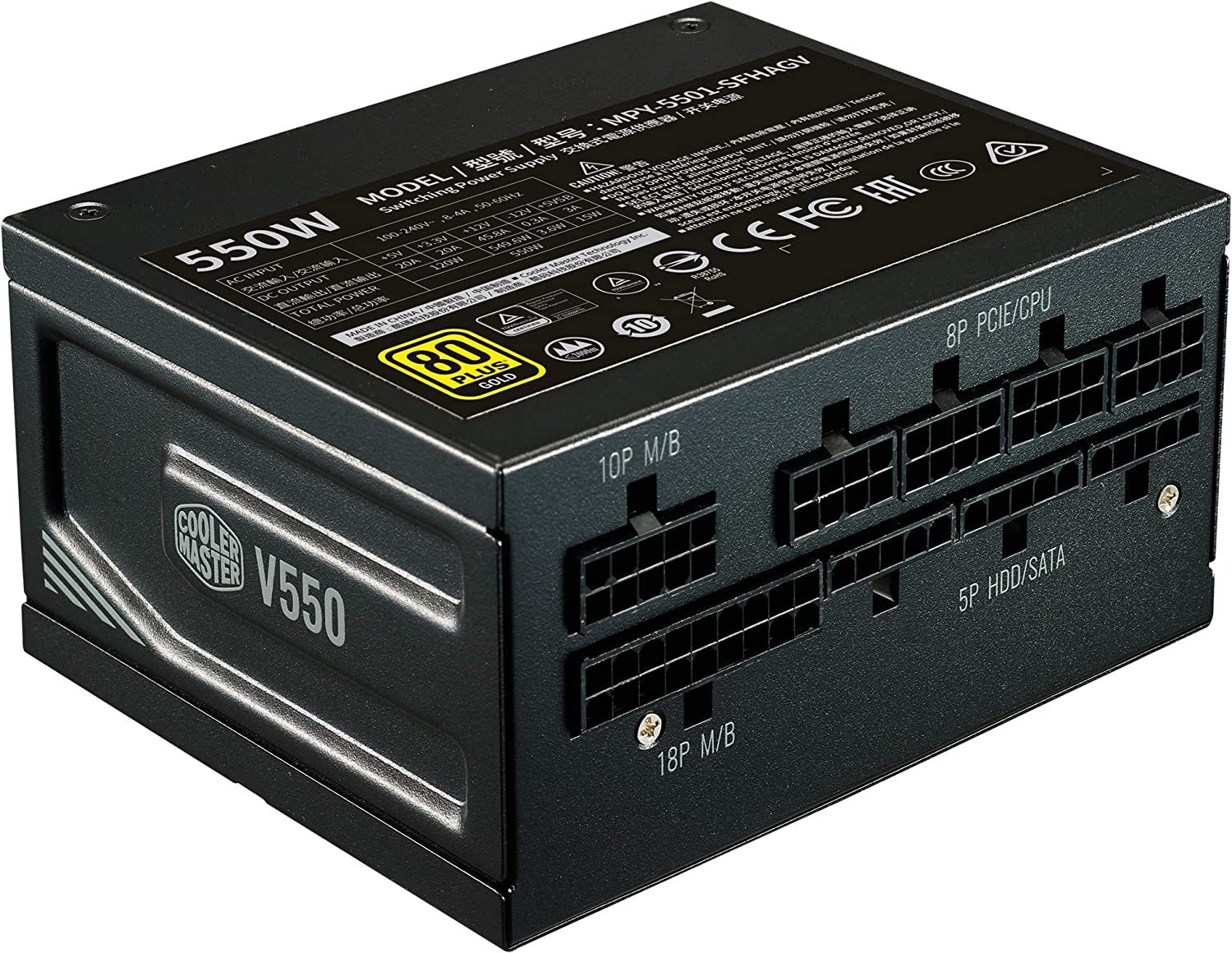

Full-modular Cabling
A mini-ITX case means minimal space for everything. Not only does that mean a reduction in room for the power supply unit, but also for the accompanying cables. That why the V SFX Gold offers full-modular cabling. Use the absolute bare minimum in space for cable management by using the absolute bare minimum in cables. Connect only the ones you need for your system to preserve as much room as possible, leading to both improved airflow and better presentation.
Specifications:
Model MPY-5501-SFHAGV-IN
EPS 8 Pin Connector 1
PFC Active PFC
Input Voltage 90-264V
EPS 4+4 Pin Connectors 1
ATX 24-Pin Connectors 1
Fan Size 92mm
Fan Bearing FDB
Modular Full Modular
ErP 2014 Lot 3 Yes
Power Good Signal 100 500 ms
MTBF >100,000 Hours
Wattage 500W
Input Frequency 47-63Hz
80 PLUS Rating 80 PLUS Gold
Operating Temperature 0-50å¡C
80 Plus Gold
SATA Connectors 8
PCI-e 6+2 Pin Connectors 4
Dimensions (L x W x H) 100 x 125 x 63.5 mm
Peripheral 4-Pin Connectors 4
Efficiency 90% @ Typical Load
Protections OVP, OPP, SCP, OCP, UVP, OTP, Surge and Inrush Protection
ATX Version SFX 12V Ver. 3.42
Series V Gold Series, V SFX Gold Series
Input Current 8-4A
Hold Up Time 20ms
Regulatory TUV, cTUVus, CE, BSMI, FCC, CCC, EAC, RCM, KCC, CB
