Deepcool GAMERSTORM CASTLE 240EX White CPU Liquid Cooler DP-GS-H12W-CSL240EXWH
CASTLE 240EX WHITE is equipped with Deepcool exclusive Anti-leak Technology.
The technology helps the system achieve an automated pressure balance, which will significantly improve operation safety of AIO liquid cooling systems.
With this technology, Deepcool is setting a new standard for liquid cooling systems.
STRONGER MOTOR
Driven by a 3-phase, x-life motor, and a pressure charging impeller, CASTLE 240EX WHITE pump is more powerful yet more quiet.
MORE EFFICIENT FLOW
With more rounded corners and optimized flow route, the upgraded double chamber design increases the heat exchange efficiency, and decreases the operation noise and energy loss.
MORE EFFICIENT FLOW

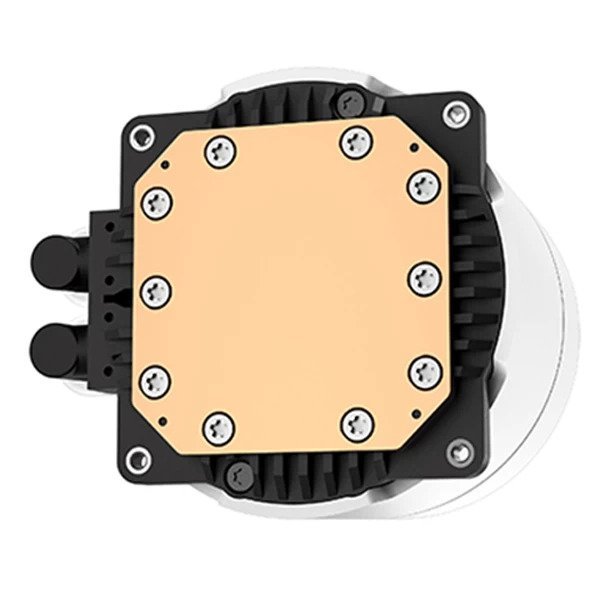

With 25% more skived fins on backside of the copper base, the heat absorption area is extensively increased.
BEST MATCHING FANS
2 specially tuned (to match to radiator property) TF120 S fans are included. The fans are also equipped with patented two-layer fan blades and flow-amplifying + noise-canceling frames.

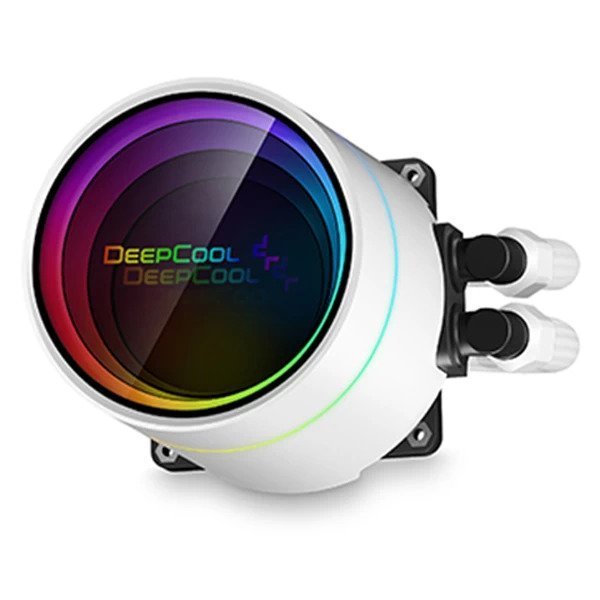

CUSTOMIZABLE LOGO
The logo is upside down? Twist off the pump cap, adjust(4 directions in total), and twist back on. Easy!
Want to change the logo? An extra logo chip is included. Buy or make your favorite logo and stick on. Fun!
Anti-leak Tech Inside, exclusively safe.
25% more skived fins on the back side of the copper base, the heat absorption area extensively increased.
Flow route optimized to reduce operation noise and energy loss.

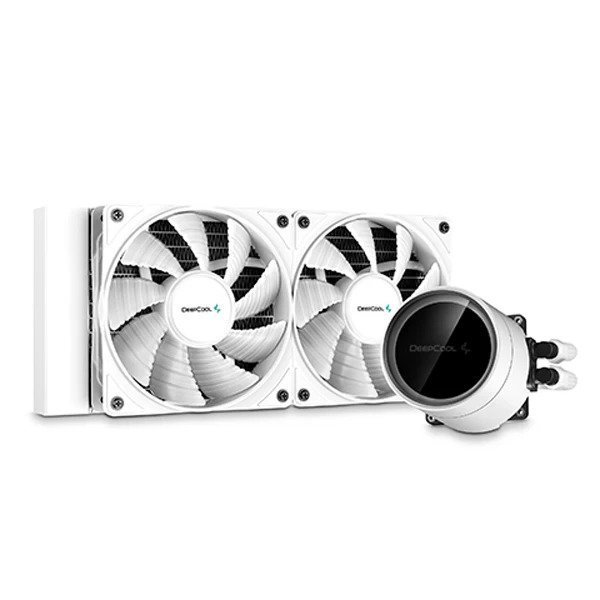

2 specially tuned TF120 S fans are included (in matching the radiator properties).
Customizable Logo, exciting DIY experience.
Ultra large copper base, extensive compatibility (including TR4).

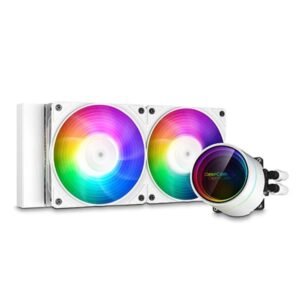

5V Addressable RGB, adjustable through motherboard or the included controller.
Specification :
Application For Intel LGA20XX/LGA1200/1151/1150/1155/LGA1366
AMD TRX4/TR4/AM4/AM3+/AM3/AM2+/AM2/FM2+/FM2/FM1
P/N DP-GS-H12W-CSL240EXWH

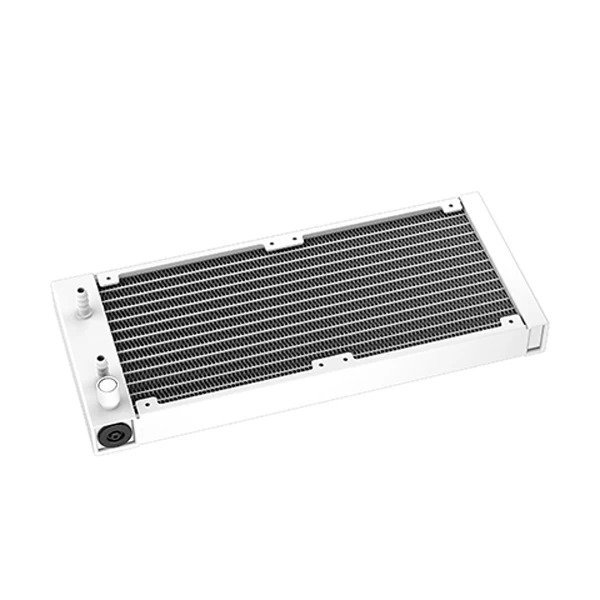

Radiator Dimensions 282ÌÑ120ÌÑ27 mm
Radiator Material Aluminum
Net Weight 1400 g
Tube length 380 mm
Pump Dimensions 86ÌÑ75ÌÑ71 mm
Pump Speed 2550 RPMå±10%
Pump Noise 17.8 dB(A)
Pump Connector 3-pin
Pump Rated Voltage 12 VDC
Pump Rated Current 0.2 A
Pump Power Consumption 2.4 W
Fan Dimensions 120ÌÑ120ÌÑ25 mm
Fan Speed 500~1800 RPMå±10%
Fan Airflow 64.4 CFM
Fan Air Pressure 2.33 mmAq
Fan Noise ‰ä_32.1 dB(A)
Fan Connector 4-pin PWM
Bearing Type Hydro Bearing
Fan Rated Voltage 12 VDC
Fan Rated Current 0.15 A
Fan Power Consumption 1.8 W
LED Type Addressable RGB LED
LED Connector 3-pin(+5V-D-G)
LED Rated Voltage 5 VDC
LED Power Consumption 2.25 W•_öPUMP•_ä
