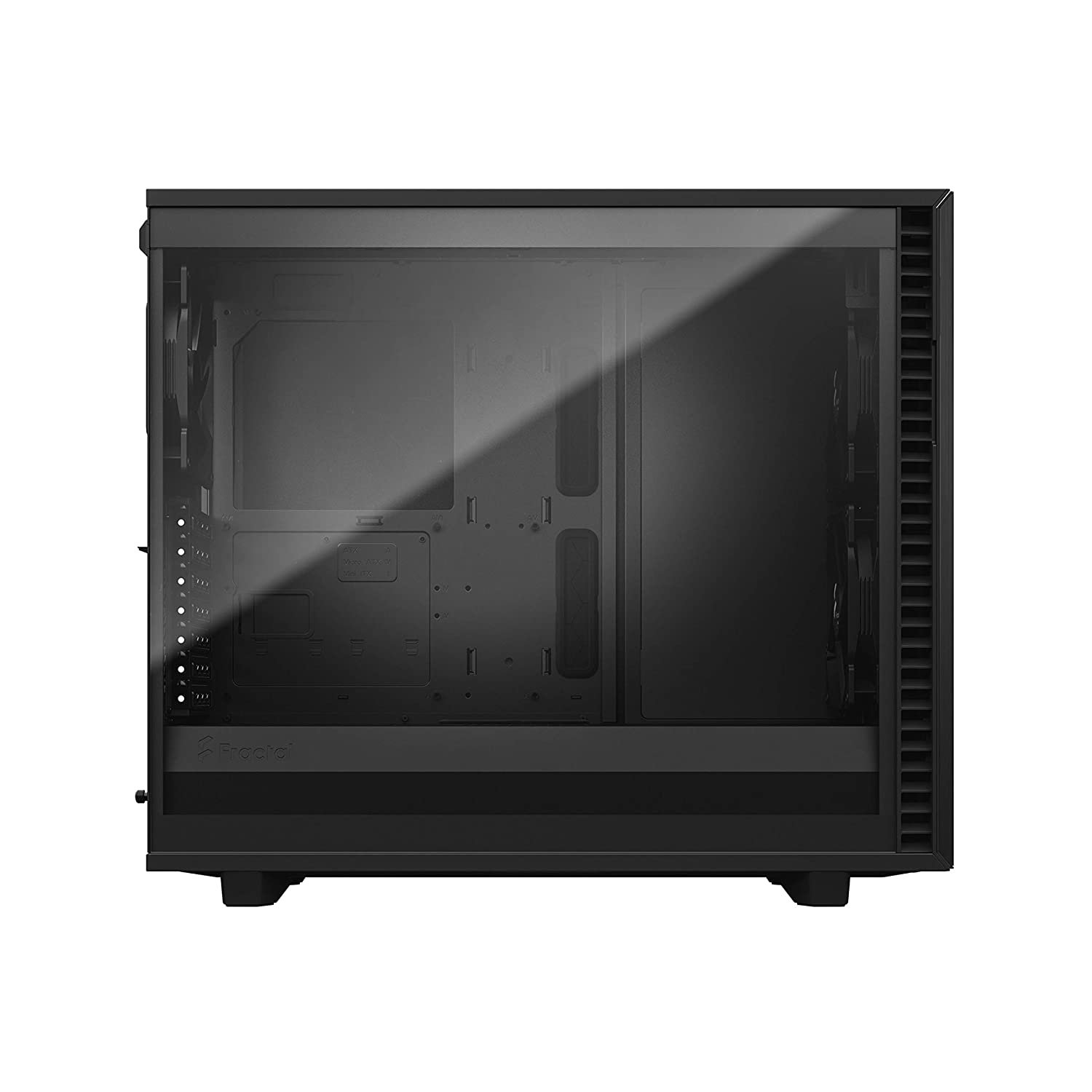

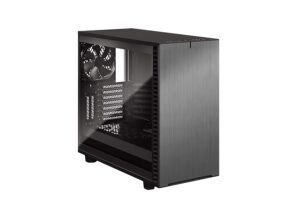

Fractal Design DEFINE 7 LIGHT (E-ATX) Mid Tower GRAY Cabinet With Tempered Glass Side Panel FD-C-DEF7A-08
The Define 7 is the latest pinnacle of the renowned Define series, setting a new standard for what you should expect from a mid-tower case when it comes to modularity, flexibility and ease of use.
The Define 7 is the latest pinnacle of the renowned Define series, setting a new standard for what you should expect from a mid-tower case when it comes to modularity, flexibility and ease of use.
New chassis design opens up to fully expose the case interior
Anodized aluminum front panel with reversible dual-handed hinges
Multibracket converts unused fan positions to HDD, SSD or pump mounts
Open and interchangeable
Swap in the ventilated panel to add three filtered fan positions;
remove the entire top to build and route with zero hindrance
Superior airflow by design
Three Dynamic X2 GP-14 fans come preinstalled with room to expand up to a total of nine fans.
Impressive cooling capacity with a total of nine 140 mm or 120 mm fan mounting positions
Easy-to-clean high airflow nylon filters with full PSU coverage and convenient front access
The single 5.25‰Û� ODD bay can be converted to an additional 140 mm front fan mount with filtered louver covering
Open layout for massive headroom
You‰Ûªll find more than enough space for your custom water loop with large reservoirs and radiators up to 420 mm in the default Open Layout.
Adaptable dual-layout interior design fits large motherboards up to 285 mm E-ATX
Support for radiators up to 360 mm in front, 420 mm up top, or 280 mm in the base
6 SSD/HDD trays + 2 SSD brackets + 1 Multibracket included
Superlative storage
Convert to Storage Layout and install up to 14 HDDs alongside four dedicated SSDs mounts
6 universal HDD/SSD brackets included with 14 positions total in Storage Layout
2 dedicated SSD brackets included with 4 positions total
Versatile Multibracket converts any unused fan position to an HDD, SSD or pump mount
Sturdy new HDD cage design with vibration damped trays
Exceptionally silent
Silence-optimized construction with industrial sound-damped front, top, and side panels
Cable management
Integrated cable guides with Velcro ties simplifies cable management behind the board
Nexus+ 2 fan hub
Ultra-slim Nexus+ 2 fan hub connects up to three PWM fans and six 3-pin fans
Type-C interface
Five front USB ports including one USB 3.1 Gen 2 Type-C with fast charging and speeds up to 10Gbps
Versatile new Multibracket
The included Multibracket lets you convert
any unused fan position to an HDD, SSD or pump mount.
Specification :
Product Code FD-C-DEF7A-08
3.5‰Û_/2.5‰Û_ Universal drive brackets 6 included, 14 positions total
Dedicated 2.5‰Û_ drive brackets 2 trays included, 4 positions total
5.25‰Û� drive mounts 1
Expansion slots 7 + 2
Front ports 1 x USB 3.1 Gen 2 Type-C, 2 x USB 3.0, 2 x USB 2.0, Audio I/O, Power button, Reset button
Total fan mounts 9 x 120/140 mm
Front fan 3 x 120/140 mm (2 x Dynamic X2 GP-14 included)
Top fan 3 x 120/140 mm
Rear fan 1 x 120/140 mm (1 x Dynamic X2 GP-14 included)
Bottom fan 2 x 120/140 mm
Dust filters Top, 2 x front, full length bottom
Fixed velcro straps Yes
Cable routing grommets Yes
Captive thumbscrews HDD brackets, SSD brackets, PSU bracket
Left side panel Tempered glass
Right side panel Industrial sound-damped steel
Compatibility
Power supply type ATX
Motherboard compatibility E-ATX (max 285 mm) / ATX / mATX / mITX
PSU max length 250 mm (with HDD cage installed)
GPU max length Storage layout: 315 mm Open layout: 491 mm (467 mm w/ front fan)
CPU cooler max height 185 mm
Front radiator Up to 360/280 mm
Top radiator Up to 360/420 mm
Rear radiator 120 mm
Bottom radiator Up to 240/280 mm
Cable routing space 30 mm
Vertical GPU Support (with Flex VRC-25) 65mm total clearance, standard 2-slot GPU (<38mm thickness) recommended for optimum cooling
Dimensions
Case dimensions (LxWxH) 547 x 240 x 475 mm
Case dimensions w feet/protrusions/screws 533 x 240 x 451 mm
Net weight 13.45 kg
Package dimensions (LxWxH) 558 x 363 x 641 mm
Package weight 15.94 kg
Volume 57.7 liters
Warranty 2 Years
