Fractal Design Define Mini C MicroATX Case FD-CA-DEF-MINI-C-BK
So many cases on the market today are made to be all things to all people. However, for many this results in a chassis full of empty bays, unused mounts and excess bulk.
So many cases on the market today are made to be all things to all people. However, for many this results in a chassis full of empty bays, unused mounts and excess bulk. Created for those who demand a flexible platform for a powerful Micro ATX build that wastes no space, the Define Mini C is the perfect solution to satisfy this balance of capacity and efficiency.
Smaller than the usual Micro ATX case, the Define Mini C and its optimized interior provides the perfect base for users. The open air design offers unobstructed airflow across your core components with high performance and silent computing in mind at every step.
Extensive cooling support via both air and water are offered to make sure even the most powerful systems can be cooled effectively. Carrying signature Define series traits, the Define Mini C brings with it that iconic front panel design, dense sound dampening material throughout and ModuVent technology in the top panel. Those wanting to remove the ModuVent to add more fans or a radiator can install in its place the new magnetic dust filter and a built in power supply shroud helps offer an unmatched level of cable management.
Our team of engineers in Sweden made sure performance without restrictions was paramount. With innovative design, the Define Mini C brings your system together in a truly exquisite way, reminding us why we choose Fractal Design.
Key features
Define Series sound dampening with ModuVent technology for silent operation in a compact micro ATX form factor
Optimized for high airflow and silent computing
Side and front panels are lined with industrial-grade sound dampening material
Flexible storage options with room for up to 5 drives
Comes with two preinstalled Fractal Design Dynamic X2 GP-12 120 mm fans optimized to deliver maximum airflow while still maintaining a low noise level
Equipped with 5 PCI expansion slots for powerful dual GPU setups.
Open air designed interior creates an unobstructed airflow path from the front intake to the rear exhaust
Easy-to-clean high airflow nylon filters on the front and base with full PSU coverage and front access for convenience.
Includes optional top filter to prevent dust buildup when ModuVent is removed for additional fan slots.
Power supply shroud conceals drive cage and excess cabling for an even quieter and cleaner looking interior free of airflow obstructions
Specifications
Micro ATX and ITX motherboard compatibility
5 expansion slots
2 3.5‰Û_ HDD positions; 3 2.5‰Û_ dedicated SSD unit positions (maximum 2.5‰Û_ drive thickness is 10mm)
6 Fan positions (2 Fractal Design Dynamic X2 GP12 120mm fans included)
Filtered fan slots in the front, top and bottom (ejects from the front of the case)
CPU coolers up to 170mm in height
ATX PSUs up to 175mm deep
Graphics cards up to 315mm in length with front fans mounted
15 35mm of space for cable routing behind the motherboard plate
Velcro straps included for easy cable management
Both side panels and rear HDD/SSD brackets feature smart captive thumbscrews
Dense sound dampening material on front, left and right side panels
ModuVent on top of case for further silent computing or additional ventilation
Colours available: Black
Case dimensions (WxHxD): 210 x 399 x 399 mm
Case dimensions with feet/protrusions/screws: 210 x 412 x 413 mm
Net weight: 6.9 kg
Package dimensions (WxHxD): 290 x 484 x 502 mm
Package weight: 8.3 kg
Cooling system
Front: 3 120 or 2 140 mm fans (includes 1 Fractal Design Dynamic X2 GP12 fan)
Rear: 1 120 mm fan (includes 1 Fractal Design Dynamic X2 GP12 fan)
Top: 2 120/140 mm fan (not included)
Bottom: 1 120 mm fan (not included)
Dust filters: Bottom, top and front intakes
Water cooling compatibility Radiators
Front 280, 240, 140 and 120 mm. Max width 144 mm
Top 240 and 120 mm radiators. Max component height on motherboard 40mm
Rear 120 mm. Max width 125 mm

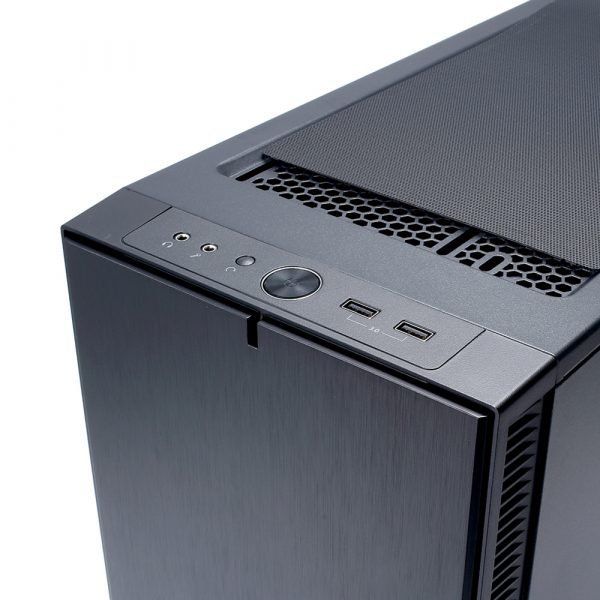

Front interface
2 USB 3.0
Audio in/out
Power button with LED
HDD activity LED
Reset button
Package contents
Define Mini C computer case
User manual
Accessory box
Optional top filter
Additional information
EAN/GTIN-13: 7350041084327
UPC: 817301014328
Product code: FD-CA-DEF-MINI-C-BK
Available for System Integrators
