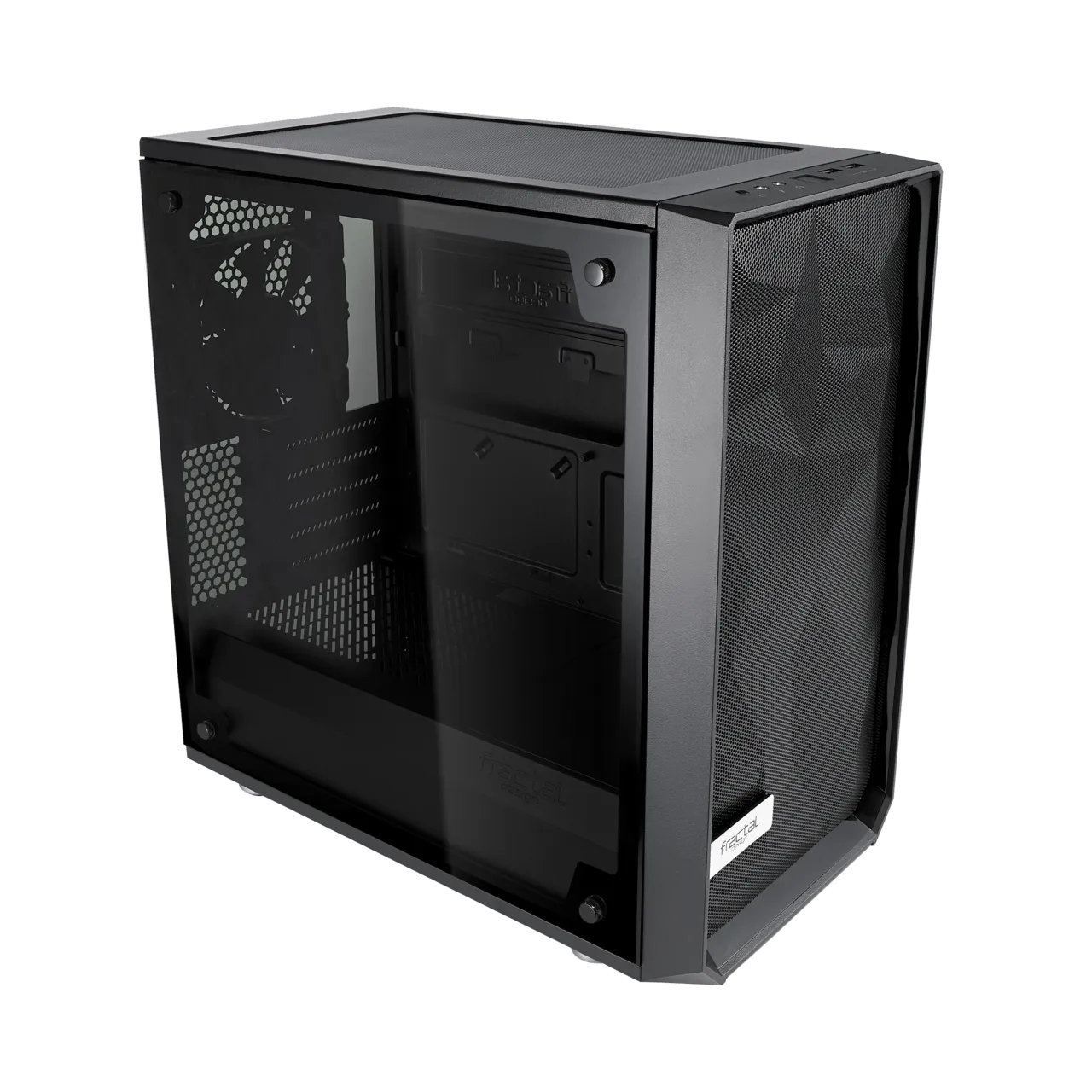

Fractal Design Meshify Mini C Tempered Glass Case FD-CA-MESH-C-MINI-BKO-TG
Meshify strikes an aggressive pose in the Fractal Design lineup with unparalleled cooling performance and a defiant new look. Like black diamond facets, the angular asymmetry of the Meshify C Mini Dark TG carves a space uniquely its own as a new force in high-airflow design. Tempered glass with a distinctive tint completes the stealth-inspired black-on-black aesthetic with exceptional style.
Meshify strikes an aggressive pose in the Fractal Design lineup with unparalleled cooling performance and a defiant new look. Like black diamond facets, the angular asymmetry of the Meshify C Mini Dark TG carves a space uniquely its own as a new force in high-airflow design. Tempered glass with a distinctive tint completes the stealth-inspired black-on-black aesthetic with exceptional style.
A compact yet spacious open Micro ATX layout creates an unrestricted airflow path from front intakes directly through key components to exhaust, ensuring heat is never an issue.
The Meshify C Mini Dark TG has a remarkably compact footprint with the high-end component support of a larger tower, and with six fan mounts and multi-radiator liquid cooling capability, it has the cooling capacity to match.
When performance is top priority and compromise is not an option, Meshify has you covered in style.
Key features :
Streamlined high-airflow design
The performance and capacity of a larger tower in a remarkably compact mATX designed tower
Angular mesh front panel maximizes air intake
Tinted tempered glass side panel for a clean looking exterior with full interior visibility
Distinctive styling with stealthy black-on-black aesthetic
Flexible storage options with room for up to 5 drives
Sturdy steel drive trays with vibration-dampening rubber grommets cushion hard drives for smooth, quiet and reliable operation
Two preinstalled Fractal Design Dynamic X2 GP-12 120 mm fans deliver optimum airflow with minimal noise
Open interior layout creates an unobstructed airflow path from front intake to rear exhaust
Easy-to-clean filters on the front, top and base with full PSU coverage and convenient front access
Full length power supply shroud conceals drive cage and excess cabling for unrestricted airflow and a clean looking interior
Up to 35 mm of space behind motherboard plate with grommeted pass-throughs for clean cable routing
Specification :
3.5‰Û_ or 2.5‰Û_ Drive capacity 2
Dedicated 2.5‰Û_ drive capacity 3
Expansion slots 5
Motherboard compatibility mATX, ITX
Power supply type ATX
Total fan mounts 7
Front fan 3x 120 or 2x 140
1x Dynamic X2 GP-12 included
Top fan 2x 120/140
Rear fan 1x 120
1x Dynamic X2 GP-12 included
Bottom fan 1x 120
Side fan No
Dust filters Bottom fan PSU
Front fans
Top panel
Front radiator 120/240mm
140/280mm (max width 144mm)
Top radiator 120/240mm (max component height on motherboard 40 mm)
Rear radiator 120mm (max width 125mm)
Power supply depth limit Maximum 175mm recommended
Graphics card length limit Max 315mm with front fan mounted
CPU cooler height limit 172mm
Cable routing 15-35mm space
Cable routing grommets Yes
Fixed Velcro straps Yes
Captive thumbscrews Both side panels
SSD brackets
Left side panel Tempered glass panel
Case dimensions (LxWxH) 395 x 212 x 399 mm
Case dimensions w feet/protrusions/screws 409 x 217 x 412 mm
Net weight 6.28 kg
Package dimensions (LxWxH) 502 x 295 x 484mm
Package weight 7.41 kg
