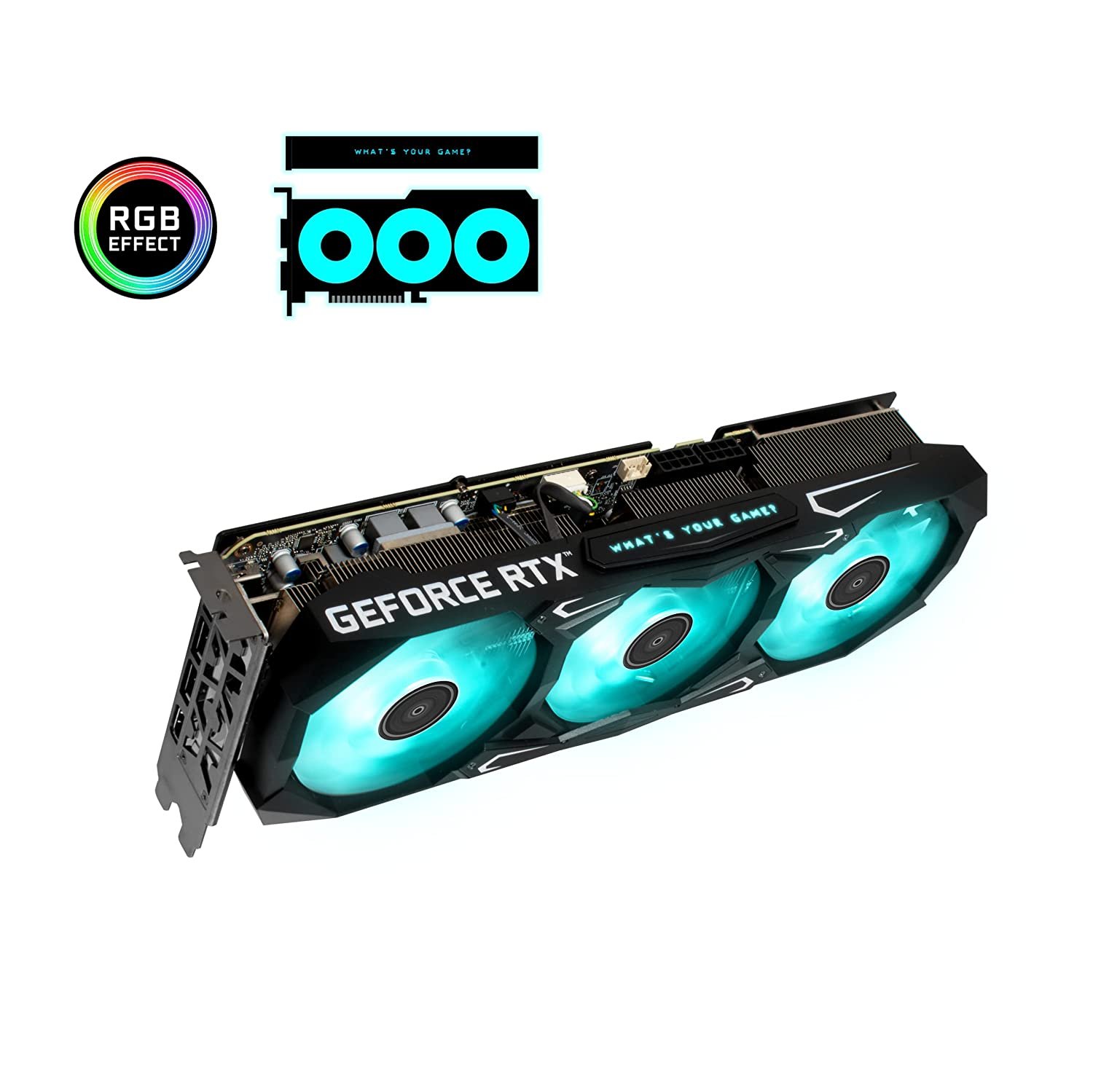

GALAX GeForce RTX 3070 Ti SG (1-Click OC) 8GB GDDR6X 256-bit Graphic card 37ISM6MD4BSG

The all-new GALAX Serious Gaming Edition has equipped with 1-Clip Booster, which can be installed at the back plate and it is the precision and quality that win. When the fan is at the back the PCB is in fact much shorter than the cooler and the key is to allow air to flow as easy as they could, therefore GALAX built larger holes that allows air to flow through to fulfil the first requirement.

Apart from that, the advantage of adding a fan on the back plate, the 1-Clip booster fan design sucks the air out instead of blowing the air in, creating a technically-correct push-pull cooling effects. When this additional fan is used, it can achieve better performance as if a GPU running with a normal back plate.

2nd Gen Ray Tracing Cores
3rd Gen Tensor Cores
PCI Express Gen 4
Microsoft DirectX 12 Ultimate
GDDR6X Graphics Memory
NVIDIA DLSS
NVIDIA GeForce Experience
NVIDIA G-SYNC
NVIDIA GPU Boost
Game Ready Drivers
Vulkan RT API, OpenGL 4.6
DisplayPort 1.4a, HDMI 2.1
HDCP 2.3
VR Ready
Specification :

GPU Engine Specs:
CUDA Cores 6144
Boost Clock (MHz) 1800
1-Click OC Clock (MHz) 1815 (by installing Xtreme Tuner Plus Software and using 1-Click OC)
Memory Specs:
Memory Speed 19 Gbps
Standard Memory Config 8GB
Memory Interface Width 256-bit GDDR6X
Memory Bandwidth (GB/sec) 608
Feature Support: PCI-E 4.0
Windows 10 64-bit, Linux 64-bit
Fan Feature: 3*92mm
Fan stop @ Idle (All Fan)
Display Support: DisplayPort 1.4a x 3, HDMI 2.1
Dimensions: Dimensions(with Bracket): 329*130*61mm
Dimensions(without Bracket): 317*113*61mm
