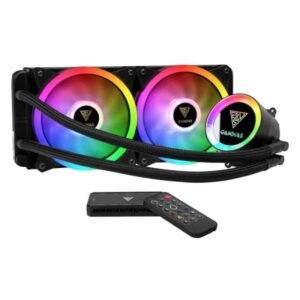

Gamdias Chione M2-240R 240mm ARGB Liquid CPU Cooler
Trio-Loop ARGB Fan
Addressable RGB Lighting
SATA Power Connector
16 22 dBA Fan Noise Level
Supports up to 8 fans & 2 additional LED strips
Model CHIONE M2-240R
Remote Control Yes
Lightning ARGB
Fan Speed 700 2000 RPM10%
Fan Airflow 55 CFM
OVERVIEW
The CHIONE M2-240R is more than just a liquid cooler. With an excellent thermal conductivity of copper base plate and 2 high-quality fans, the CHIONE M2-240R has an AEOLUS Box and a compact remote controller. Its integrated lighting effects and fan speed controls, along with motherboard RGB sync, simply create your own RGB style and complete your PC setup experience.
Advanced Trio of RGB; Double rings, fan, a ring around the pump, and the logo. 55 built-in lighting effects including neon-flex RGB, multi-color and LED off. With the compact remote controller, create your own RGB style by pressing buttons to exchange different effects and fan speeds, or switch to MB mode for software adjustments. The CHIONE M2-240R applies cutting-edge style with a mirror finish on the top of the pump to create a performance visual impact and bring out a more sensual lighting effect.
This cooler is about to push your rig to the next level! Add up to 8 fans to display group lighting effects, including the AEOLUS box, with its tiny form factor magnetically placed inside your case. With the daisy chain topology, you can always connect more than one AEOLUS box together with no matter how many fans you install in the case.
The CHIONE M2-240R comes with leak-free Teflon tubes which make this all-in-one system extremely low maintenance. The tube handles the high pressure in extreme heat, which enhances the cooling process. Hence, this makes the CHIONE M2-240R a highly durable cooler. The copper base plate maximizes heat dissipation to provide superior cooling performance.
As an all-in-one liquid cooler, the CHIONE M2-240R does not take up much space and offers various options for installation. Amazing design simplifies installation and maintenance.
TECHNICAL SPECIFICATIONS
MODEL_CHIONE M2-240R
FAN
Dimensions_120 x 120 x 25 mm
Speed_700 2000 RPM10%
Noise Level_16 22 dBA
Air Flow_55 CFM
Air Pressure_1.94 mmH2O
Bearing_Hydraulic
Rated Voltage_12 V (Fan) / 5V(LED)
Connector_8 pin
Support PWM Control_No
COOLER
Radiator Dimensions_274 x 119 x 27 mm
Tube Material_Teflon
Base Plate Material_Copper
Radiator Material_Aluminum
Sleeved Tube_Yes
Rated Voltage_12 V (Pump) / 5V(LED)
Pump Connector_3 Pin
Compatibility_LGA2066, 2011-v3, 2011, 1151, 1150, 1155, 1156, 1366, 775, AM4, AM3+, AM3, AM2+, AM2, FM2+, FM2, FM1, TR4, LGA1200
TDP_200W 10%
Support Motherboard RGB Sync Connectors_5V 3-pin addressable (digital) RGB header Only
REMOTE CONTROL
Selectable Fan Speeds_Yes
Selectable Light Speeds_Yes
Selectable Brightness_Yes
CONTROL BOX
Model_AEOLUS Box II
Dimensions_92 x 46 x 13 mm
Power Connector_SATA
Support LED type_5V 3-pin Addressable (Digital) LED
Support Motherboard RGB Sync Connectors_5V 3-pin Addressable (Digital) LED RGB Header Only
Support Daisy Chain Another AEOLUS Box II_Yes
Built-in Magnet_Yes
PACKAGE CONTAINS
Fan_2
Remote Control_1
AEOLUS BOX II_1
Thermal Grease_1
All-In-One CPU Liquid Cooler_1
Mounting Kit_Yes
Specification: Gamdias Chione M2-240R 240mm ARGB Liquid CPU Cooler
Brand
Gamdias
Product Type
CPU Coolers
FORM FACTOR
ATX , E-ATX , MICRO-ATX
COOLER TYPE
LIQUID AIO COOLER
FAN SIZE
240 mm
COLOR
BLACK
LIGHTING
ARGB
FAN CONTROLLER
YES
IDEAL FOR GAMING
YES
WARRANTY
2 Years Warranty
