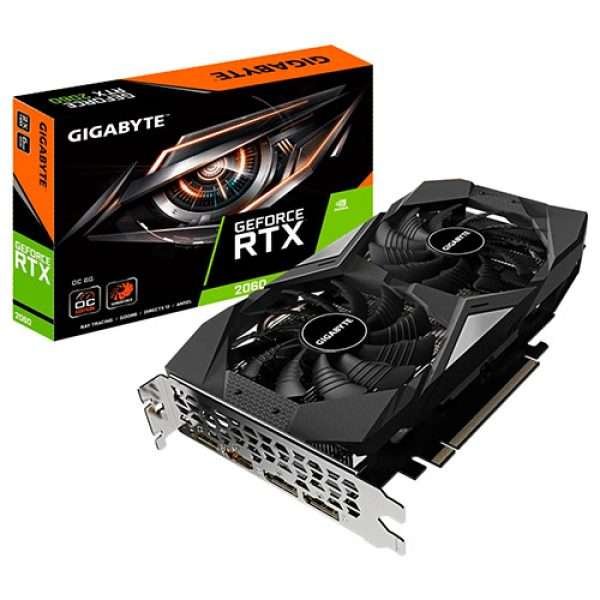

Gigabyte Nvidia RTX 2060 OC 6GB GDDR6 Graphics Card
6GB GDDR6 Memory
192-bit Bus Memory
1755MHz Core Clock
500W Power Supply
Resolution (7680 x 4320)
Memory Size 6GB GDDR6
GPU Interface PCI-E 3.0 x 16
GPU Memory Bus 192-bit
Resolution 76804320
CUDA Cores 1920
OVERVIEW

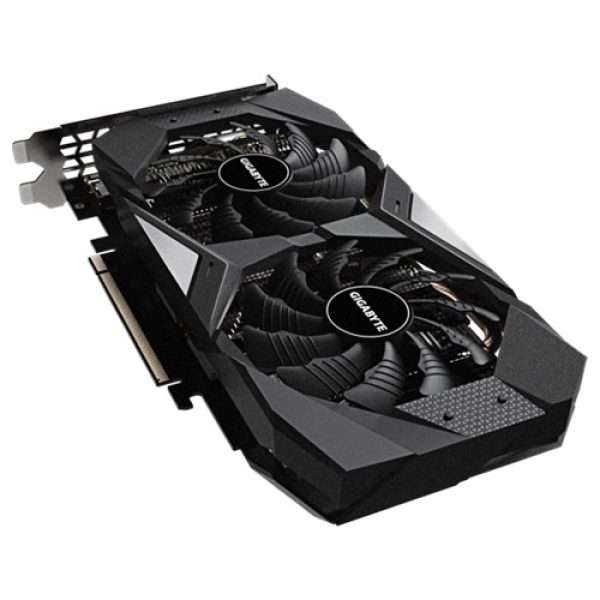

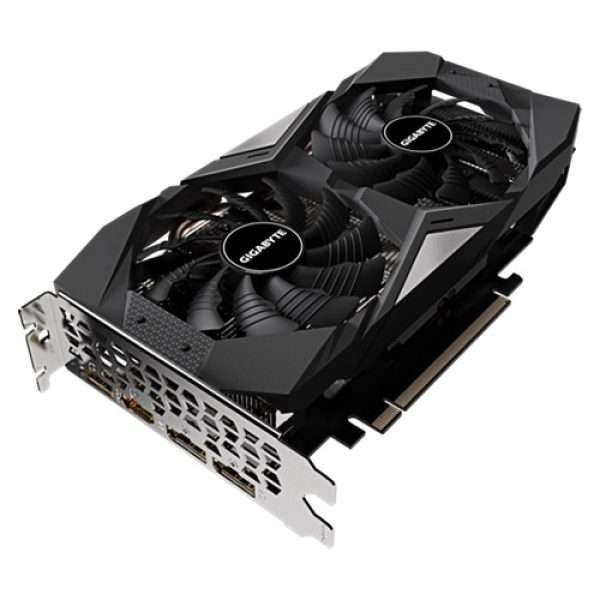

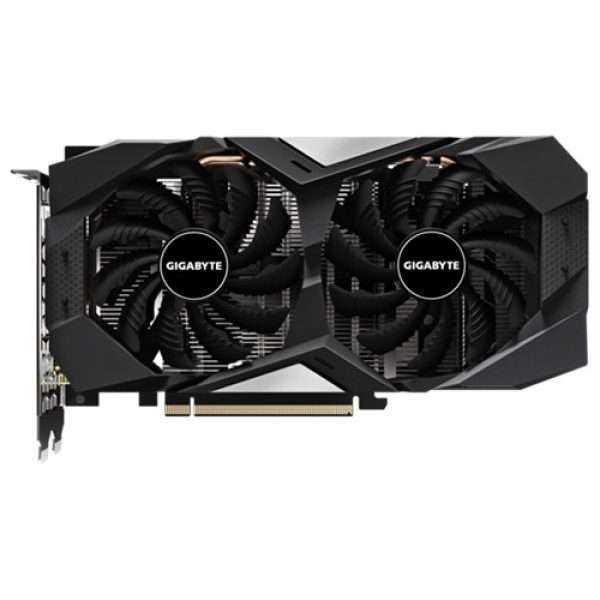

The Gigabyte Nvidia RTX 2060 OC 6GB GDDR6 Graphics Card is a powerful card that will allow for a more intense gaming experience. It features a custom PCB with a 16+2 power phase design, and 6GB of GDDR6 memory. It is factory overclocked to 1830 MHz with a Boost Clock of 1890 MHz the RTX 2060 comes with a wide range of video outputs such as Display Port, HDMI, and DVI-D. This card also has a sleek, open-air chassis with a metal backplate and a one-piece metal shroud. It has 2x 8-pin power connectors and comes with a 2-year warranty.
The GIGABYTE patent Alternate Spinning is the only answer that can resolve the turbulent airflow of adjoining fans. Since the adjoining followers rotate in an equal direction, the airflow course is contrary between the fans, which will purpose turbulent airflow and minimize warmth dissipation efficiency. GIGABYTE turns the adjoining followers in the contrary direction, so that the airflow path between the two followers is the same, lowering the turbulence and bettering the airflow pressure.
The Graphics card uses the 4+2 strength section diagram to enable the MOSFET to function at a decreased temperature, and over-temperature safety format, and load balancing for every MOSFET, plus the Ultra Durable licensed chokes and capacitors, to grant fantastic overall performance and longer device life.
TECHNICAL SPECIFICATIONS
Chipset_ GeForce RTX 2060
Core Clock_ 1755 MHz (Reference Card: 1680 MHz)
RTX-OPS_ 38
CUDA Cores_ 1920
Memory Clock_ 14000 MHz
Memory Size_ 6 GB
Memory Type_ GDDR6
Memory Bus_ 192 bit
Memory Bandwidth (GB/sec)_ 336 GB/s
Card Bus_ PCI-E 3.0 x 16
Digital max resolution_ 7680 x 4320@MHz
Multi-view_ 4
Card size_ L=225.65 W=122.02 H=40.5 mm
PCB Form_ ATX
DirectX_ 12
OpenGL_ 4.6
Power requirement_ 500W
Power Connectors_ 8 Pin 1
Output_ 3 x DisplayPort 1.4, 1 x HDMI 2.0b
SLI support_ No
Accessories_ Quick guide, Driver CD
Specification: Gigabyte Nvidia RTX 2060 OC 6GB GDDR6 Graphics Card
EAN, GTIN, UPC_
889523016206
FANS_
2
WARRANTY_
3 Years Warranty
Product Type_
Graphics Card
Brand_
Gigabyte
FORM FACTOR_
ATX , E-ATX , MICRO-ATX
COLOR_
BLACK
CHIPSET_
NVIDIA
PROCESSOR SERIES_
RTX
CAPACITY_
6 GB
BIT RATE_
192
MEMORY TYPE_
GDDR6
