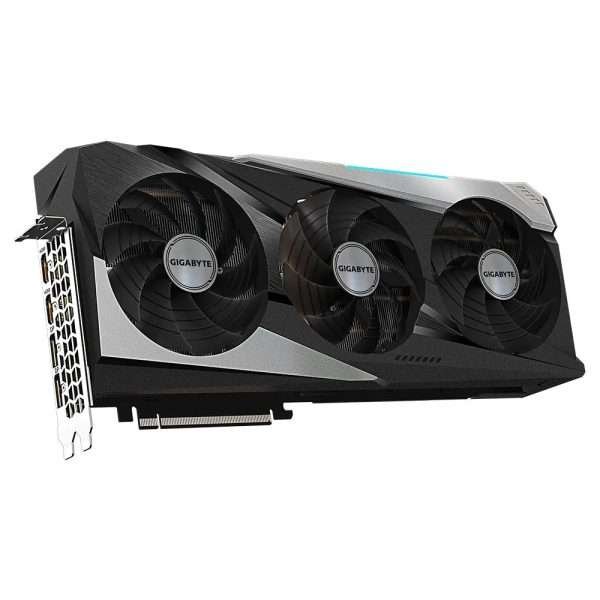

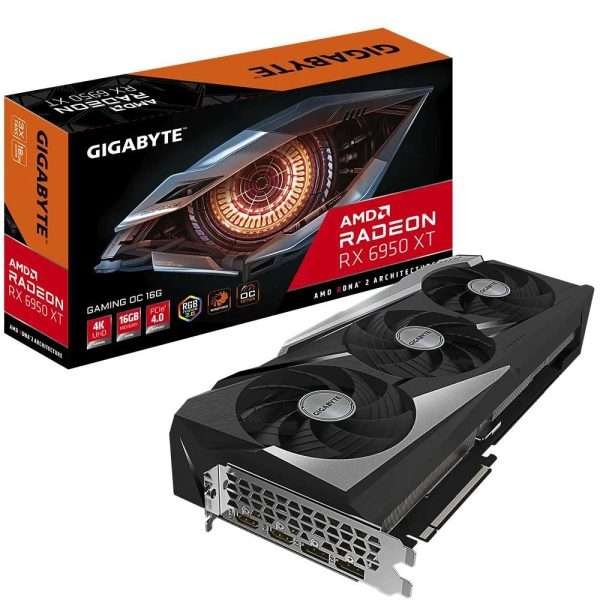

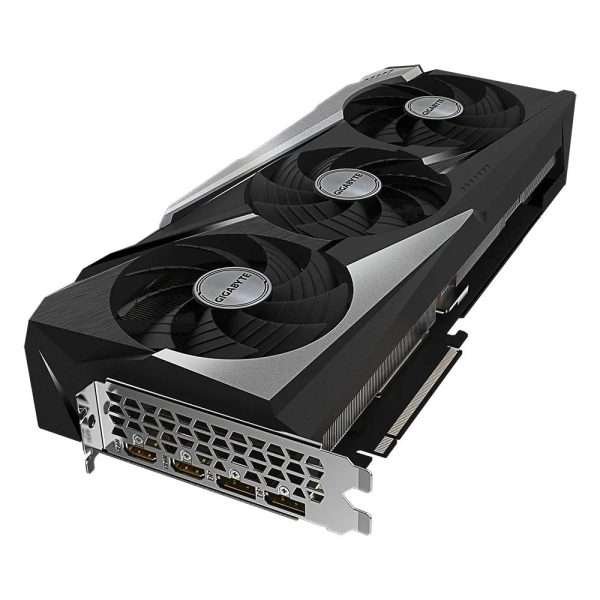

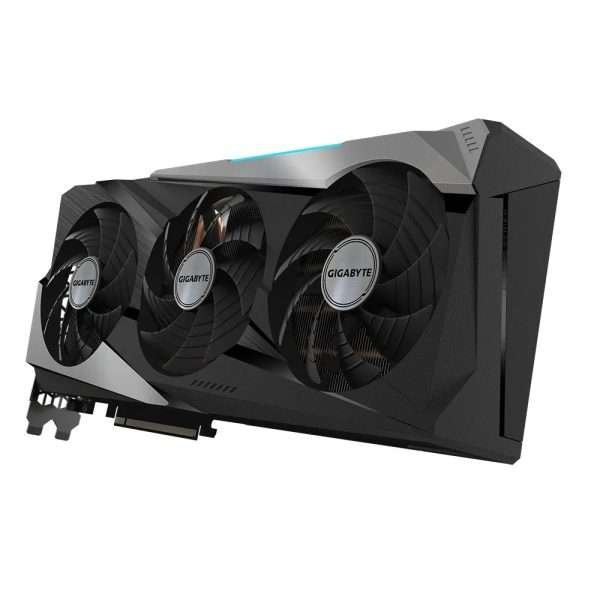

Gigabyte Radeon RX 6950 XT Gaming OC | 16GB GDDR6 Graphics Card
16GB GDDR6 Video Memory
256-bit Bus Memory
PCI-E 4.0 Interface
RGB Fusion 2.0 LED
576 GB/s Memory Bandwidth
Highlights: Gigabyte Radeon RX 6950 XT Gaming OC
GPU Interface PCI-E 4.0
Video Memory 16GB GDDR6
CUDA Cores 5120
Memory Clock 18000 MHz
Memory Bus 256 bit
Maximum Display Support 4
About Gigabyte Radeon RX 6950 XT Gaming OC
The Gigabyte Radeon RX 6950 XT Gaming OC graphics card can take on the most demanding titles at maximum settings with all the latest features enabled. With 80 powerful graphics compute units, up to 16GB of high-speed GDDR6 memory, and up to 128MB of low-latency AMD Infinity cache, these cards redefine enthusiast-level performance.
Experience a new level of immersion with the Gigabyte Radeon RX 6950 XT Gaming OC with support for the latest software innovations such as DirectX 12 Ultimate and the latest AMD FidelityFX technology feature set, which enables realistic lighting, shadows, and reflections. AMD FidelityFX technology features optimized for AMD RDNA 2 architecture to power next-generation gaming visuals at high framerates, delivering an immersive gaming experience.
The WINDFORCE 3X cooling system features three 100mm unique blade fans, alternating spinning, 8 composite copper heat pipes, a large vapor chamber that directly touches the GPU, and 3D active fans, which together provide high-efficiency heat dissipation.
FEATURES:
Best Gaming Experience For The Best Gaming OS
Windows 11 is built for ultimate PC gaming, with superior graphics, amazing speed, and an incredible selection of games. Windows 11 contains gaming features like DirectX 12 Ultimate, DirectStorage, and Auto HDR. AMD processors, graphics, and software are ready to supercharge your gaming experience with the new operating system from day one.
Get a Boost In Frame For Your Games
Boost your frame rate across a wide range of games to deliver high-quality, high-resolution, and high framerates with AMD FidelityFX Super Resolution (FSR) for image quality and Supercharge performance across the highest selection of supported games, or with Radeon Super Resolution (RSR) Gaming experience on AMD Radeon graphics card.
WINDFORCE 3X Cooling System
The WINDFORCE 3X cooling system features three 100mm unique blade fans, alternating spinning, 8 composite copper heat pipes, a large vapor chamber that directly touches the GPU, and 3D active fans, which together provide high-efficiency heat dissipation.
Alternative Spinning
Alternate spinning can reduce adjacent fan turbulence and increase air pressure.
Smoothy Airflow
GIGABYTE rotates adjacent fans in opposite directions, so that the direction of airflow between the two fans is the same, reducing turbulence and increasing airflow pressure.
3D Dynamic Fan
The 3D Active Fan provides semi-passive cooling, and the fan will be off when the GPU is under low load or in low-power games.
Exceptional fan blade
Airflow is dispersed by triangular fan edges and smoothly guided by 3D stripe curves on the fan surface.
Graphene Nano Lubricant
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to double ball bearing life and quieter.
Screen Cooling
Enhanced heatsink design provides better heat dissipation to airflow.
Large steam chamber and heat pipe
With direct communication to the GPU and VRAM, the large vapor chamber combines composite heat pipes to efficiently transfer heat generated from the inner core to the heat sink.
RGB FUSION 2.0
With 16.7M customizable color options and multiple lighting effects, you can select lighting effects or synchronize with other AORUS devices. With an integrated intuitive user interface, RGB Fusion 2.0 offers you a more satisfying solution for customizing lighting effects on all supported devices.
From motherboards and graphics cards to peripheral products, you can personalize your gaming rig with your style and show off your build by sharing your profiles. Also, the latest gaming mode makes the lighting effects interactive with certain games to give you the most immersive gaming experience.
Protected Metal Back Plate
The metal back plate not only delivers an aesthetic shape but also enhances the design of the graphics card to supply entire protection.
Dual BIOS
The silent mode will provide a quiet experience. A reboot is required for the mode switch to take effect. The default is OC mode.
AORUS Engine
The state-of-the-art intuitive interface lets you adjust clock speed, voltage, fan performance, and power targets in real-time to suit your gaming needs.
TECHNICAL SPECIFICATIONS
Graphics Processing_ Radeon RX 6950 XT
Core Clock_ Boost Clock: up to 2324 MHz (Reference card: 2310 MHz)
Game Clock: up to 2116 MHz (Reference card: 2100 MHz)
CUDA Cores_ 5120
Process Technology_ 7 nm
Memory Size_ 16 GB
Memory Type_ GDDR6
Memory Bus_ 256 bit
Memory Clock_ 18000 MHz
Card Bus_ PCI-E 4.0
Memory Bandwidth (GB/sec)_ 576 GB/s
Max Resolution (Digital)_ 7680 x 4320
Max Display Support_ 4
DirectX_ 12 Ultimate
OpenGL_ 4.6
Recommended PSU_ 850W
Power Connectors_ 8 pin
Output_ DisplayPort 1.4a, HDMI 2.1
PCB Form Factor_ ATX
Card size (L x W x H)_ 332 mm x 143 mm x 57 mm
Accessories_ Quick guide
Specification: Gigabyte Radeon RX 6950 XT Gaming OC | 16GB GDDR6 Graphics Card
FANS_
3
Product Type_
Graphics Card
FORM FACTOR_
ATX , E-ATX
Brand_
Gigabyte
COLOR_
BLACK
CHIPSET_
AMD
CAPACITY_
16 GB
BIT RATE_
256
MEMORY TYPE_
GDDR6
LIGHTING_
RGB
WARRANTY_
3 Years Warranty
