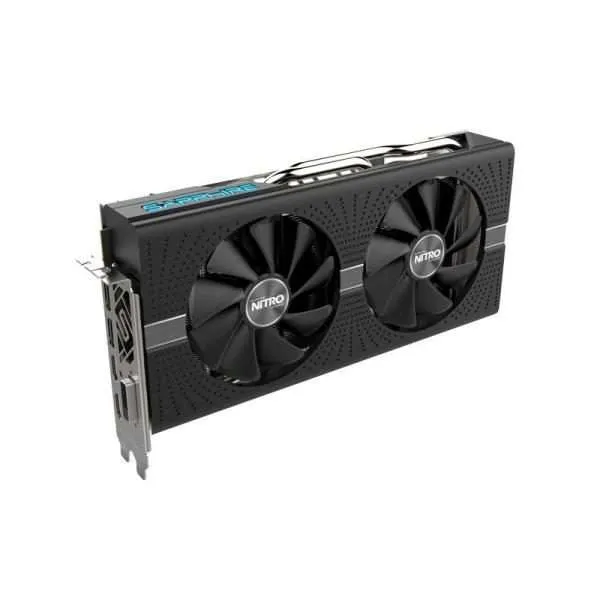

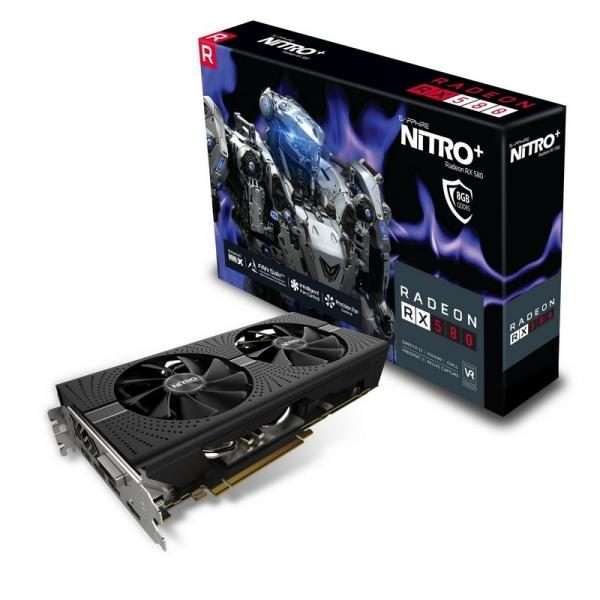

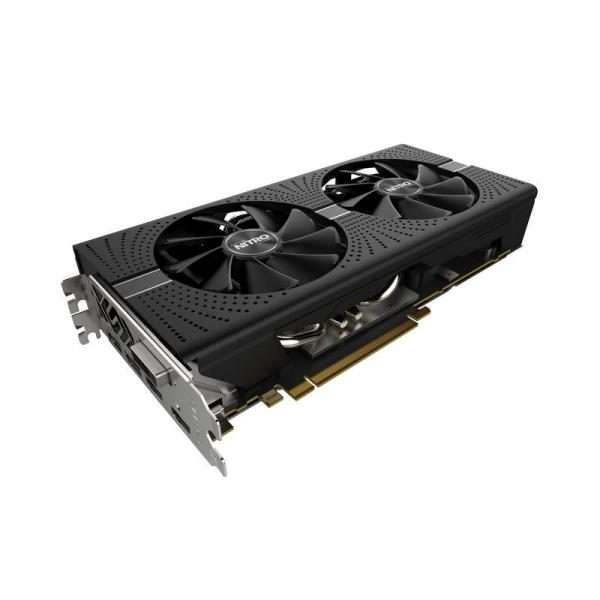

Sapphire Nitro+ Radeon RX 580 8GB Graphics Card

Memory Size 8GB GDDR5

Interface PCI-Express 3.0

Memory Bus 256-bit

Max Resolution 51202880

Display Support 5

Recommended reading:Sapphire PULSE AMD Radeon RX 6500 XT 4GB GDDR6 Graphic Card 11314-01-20G

TECHNICAL SPECIFICATIONS

GPU_ -RX 580, 14 nm FinFET
-4th Graphics Core Next (GCN)
Engine Clock_ -Up to 1411 MHz, Boost
Stream Processors_
Memory Size/Bus_ -8GB GDDR5/256-bit
Memory Clock_ -8000 MHz effective
Displays_ -Maximum 5 Outputs
Interface_ -PCI-Express 3.0
Resolution_ -DisplayPort: 51202880@60Hz
-HDMI: 40962160@60Hz
-DVI:25601600@60Hz
Output_ -1x DVI-D
-2x HDMI
-2x DisplayPort 1.4
BIOS Support_ -UEFI
API_ -OpenGL 4.5
-OpenCL 2.0
-DirectX 12
-Shader Model 5.0
Game Index_ -1440p gaming
Sapphire Features_ -NITRO Fan Check
-NITRO Quick Connect System
-NITRO Glow RGB LED
-NITRO CoolTech(NCT)
-Intelligent Fan Control III
-Precision Fan Control
-Robust VRM Cooling
-Long Life Polymer Capacitor
-Fuse Protection
-Dual UEFI
AMD Features_ -Radeon VR Ready Premium
-Radeon Software
-Radeon FreeSync Technology
-AMD LiquidVR Technology
-4th Gen GCN Architecture
-Radeon Chill
-Radeon ReLive DirectX 12 Technology
-AMD Eyefinity Technology (Gaming)
-AMD App Acceleration
-AMD CrossFire Technology
-AMD CrossFire (Bridgeless)
-3rd Gen 14nm Process Technology
-OpenCL 2.0
-OpenGL 4.5
-AMD PowerTune Technology
-TrueAudio Next
-Unified Video Decoder (UVD)
-Video Code Engine (VCE)
-Virtual Super Resolution
-The Vulkan API
Cooling_ -Dual-X Cooling Technology
-Two ball bearing fan
-Fan Quick Connect
Form Factor_ -2.2 Slot, ATX
Power Consumption_ –<235W OS_ -Windows 10, Windows 7, 64bit operating system required System Requirement_ -500 Watt or greater power supply (Recommended) -1 x 8-pin Power Connector + 1 x 6-pin Power Connector -PCI Express compliant motherboard with one x16 graphics slot Dimension_ -260X135X43mm Weight (Approximate)_ -1kg 590gm Specification: Sapphire Nitro+ Radeon RX 580 8GB Graphics Card Brand_ Sapphire CHIPSET_ AMD BIT RATE_ 256 CAPACITY_ 8 GB COUNTRY OF ORIGIN_ INDIA FANS_ 2 MEMORY TYPE_ GDDR5 PROCESSOR SERIES_ RX WARRANTY_ 3 Years Warranty Product Type_ Graphics Card FORM FACTOR_ ATX , E-ATX
